SSF4703 - P+Schottky Hybrid MOSFET

Key Features

  • s.
  • VDS (V) =-20V.
  • ID =-3.4 A (VGS =-10V).
  • RDS(ON) ＜ 90mΩ (VGS =-4.5V).
  • RDS(ON) ＜ 120mΩ (VGS =-2.5V).
  • RDS(ON) ＜ 160mΩ (VGS =-1.8V).
  • VR = 20V, IF = 1A, VF.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SSF4703 MOSFET Silikron
SSF4703DC 20V P-Channel MOSFET GOOD-ARK
SSF4703DC MOSFET Silikron
SSF47NS60H MOSFET Silikron
SSF4004 MOSFET Silikron Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

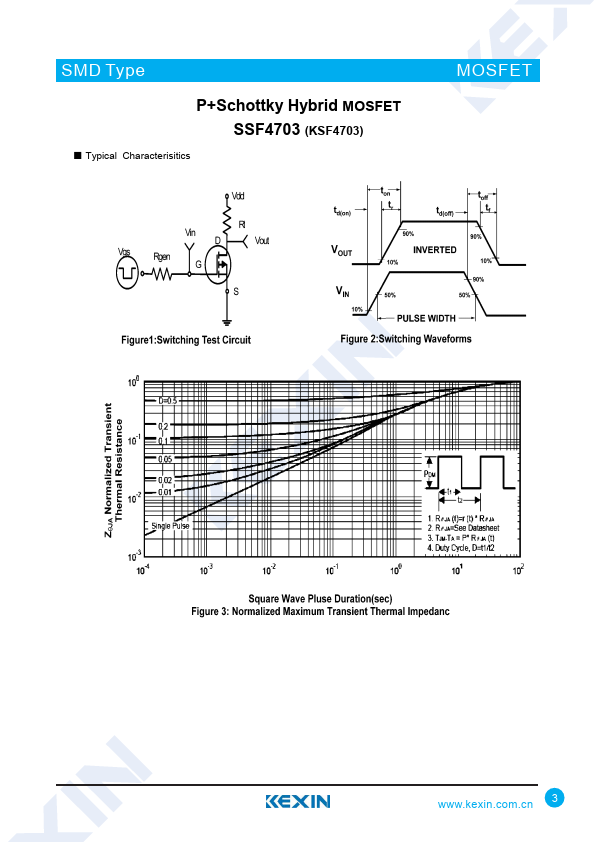

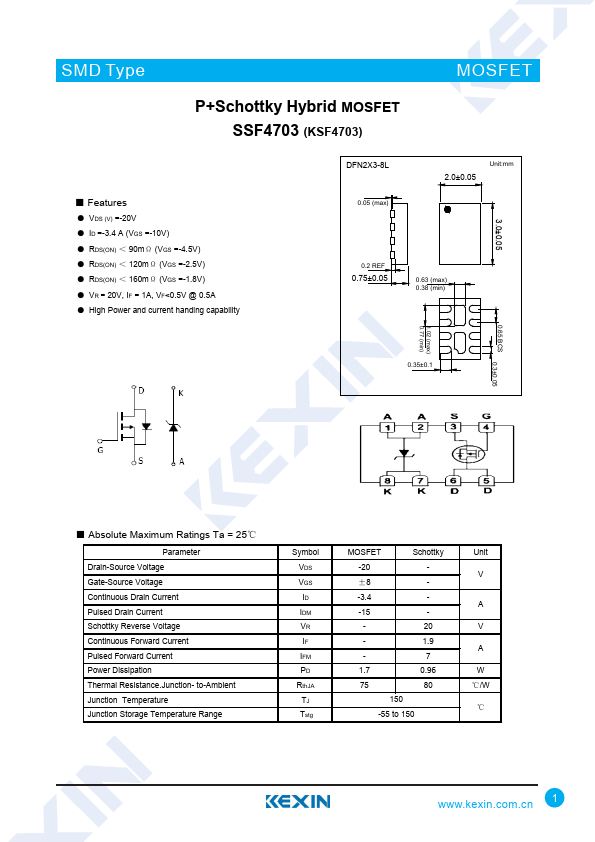

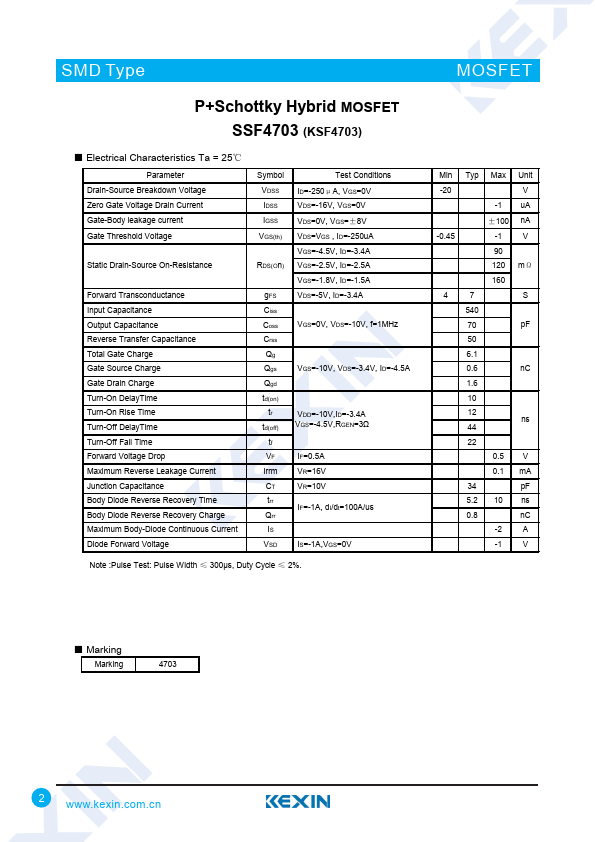

SMD Type MOSFET P+Schottky Hybrid MOSFET SSF4703 (KSF4703) ■ Features ● VDS (V) =-20V ● ID =-3.4 A (VGS =-10V) ● RDS(ON) ＜ 90mΩ (VGS =-4.5V) ● RDS(ON) ＜ 120mΩ (VGS =-2.5V) ● RDS(ON) ＜ 160mΩ (VGS =-1.8V) ● VR = 20V, IF = 1A, VF<0.5V @ 0.5A ● High Power and current handing capability DFN2X3-8L 0.05 (max) 2.0±0.05 Unit:mm 3.0±0.05 0.2 REF 0.75±0.05 0.63 (max) 0.38 (min) 0.35±0.1 0.65 BCS 0.3±0.05 1.02 (max) 0.77 (min) ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Schottky Reverse Voltage Continuous Forward Current Pulsed Forward Current Power Dissipation Thermal Resistance.
