WNM2020 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 20V.
  • ID = 0.83 A.
  • RDS(ON) ＜ 310mΩ (VGS = 4.5V).
  • RDS(ON) ＜ 360mΩ (VGS = 2.5V).
  • RDS(ON) ＜ 460mΩ (VGS = 1.8V) +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 D 3 0-0.1 +0.1 0.38 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 1. Gate 2. Source 3. Drain 1 2 G S.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (Note.1).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
WNM2020 N-Channel MOSFET Will Semiconductor
WNM2020 N-Channel MOSFET TY Semiconductor
WNM2020 N-Channel 20V MOSFET VBsemi
WNM2020-3 N-Channel MOSFET VBsemi
WNM2021 N-Channel MOSFET Will Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
WNM2016 N-Channel MOSFET
WNM2046 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

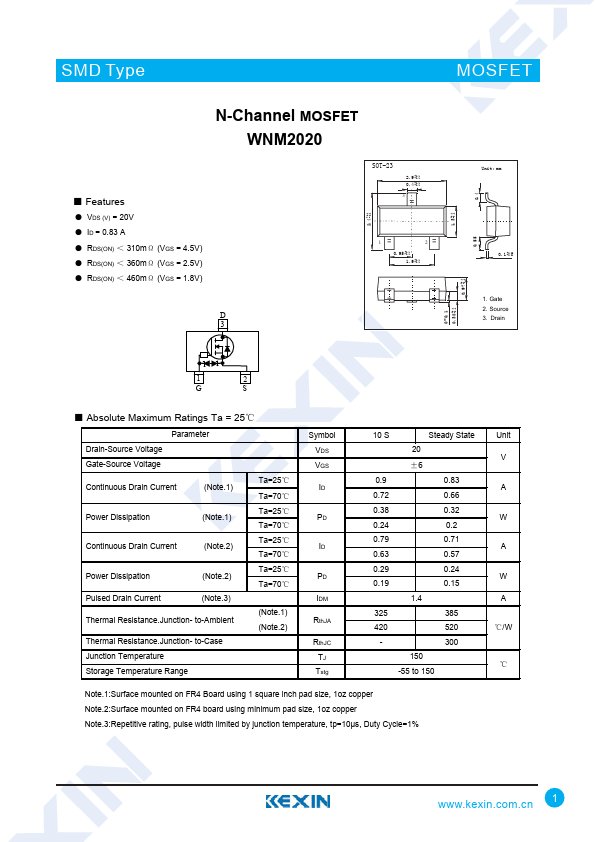

SMD Type MOSFET N-Channel MOSFET WNM2020 ■ Features ● VDS (V) = 20V ● ID = 0.83 A ● RDS(ON) ＜ 310mΩ (VGS = 4.5V) ● RDS(ON) ＜ 360mΩ (VGS = 2.5V) ● RDS(ON) ＜ 460mΩ (VGS = 1.8V) +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 D 3 0-0.1 +0.1 0.38 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 1. Gate 2. Source 3. Drain 1 2 G S ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (Note.1) Ta=25℃ Ta=70℃ Power Dissipation (Note.1) Continuous Drain Current (Note.2) Power Dissipation (Note.2) Pulsed Drain Current (Note.3) Thermal Resistance.Junction- to-Ambient Thermal Resistance.
