XP161 - N-Channel Power MOSFET

Key Features

  • s.
  • Low on-state resistance : Rds (on) = 0.055Ω ( Vgs = 4.5V ) Rds (on) = 0.095Ω ( Vgs = 2.5V ) Rds (on) = 0.20Ω ( Vgs = 1.5V ).
  • Ultra high-speed switching.
  • Gate protect diode built-in.
  • Driving Voltage : 1.5V SOT-89 4.50+0.1 -0.1 1.80+0.1 -0.1 12 3 0.48+0.1 -0.1 0.53+0.1 -0.1 +0.1 2.50 -0.1 +0.1 4.00 -0.1 Unit: mm 1.50+0.1 -0.1 0.44+0.1 -0.1 +0.1 0.80 -0.1 +0.1 2.60 -0.1 3.00+0.1 -0.1 +0.1 0.40 -0.1 1 Gate 11.. SBoauserce 2 Drain 22.. DCroallienctor 333.. GSEmaotuiei.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
XP161A0390PR Power MOS FET Torex Semiconductor
XP161A11A1PR Power MOS FET Torex Semiconductor
XP161A11A1PR-G Power MOSFET Torex
XP161A1265PR Power MOS FET Torex Semiconductor
XP161A1265PR-G Power MOSFET Torex Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

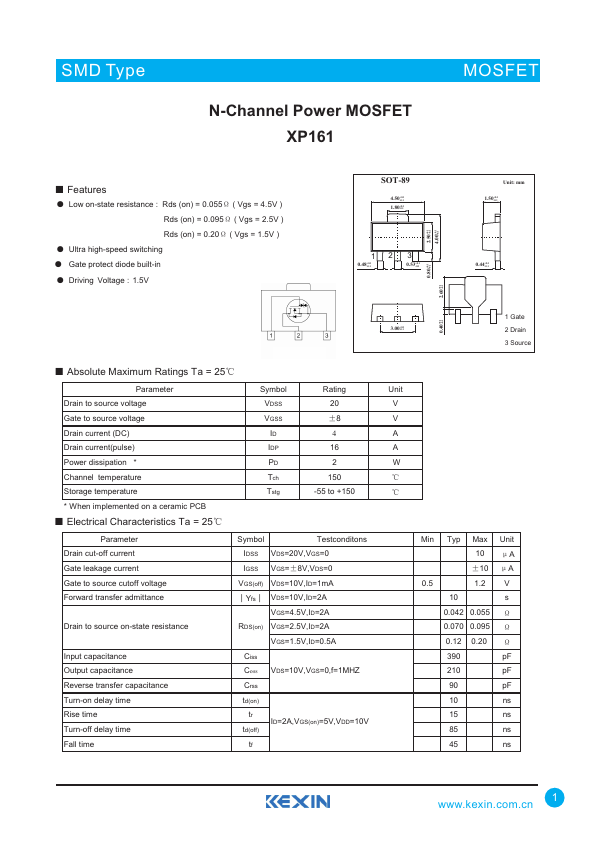

SMD Type N-Channel Power MOSFET XP161 MOSFET ■ Features ● Low on-state resistance : Rds (on) = 0.055Ω ( Vgs = 4.5V ) Rds (on) = 0.095Ω ( Vgs = 2.5V ) Rds (on) = 0.20Ω ( Vgs = 1.5V ) ● Ultra high-speed switching ● Gate protect diode built-in ● Driving Voltage : 1.5V SOT-89 4.50+0.1 -0.1 1.80+0.1 -0.1 12 3 0.48+0.1 -0.1 0.53+0.1 -0.1 +0.1 2.50 -0.1 +0.1 4.00 -0.1 Unit: mm 1.50+0.1 -0.1 0.44+0.1 -0.1 +0.1 0.80 -0.1 +0.1 2.60 -0.1 3.00+0.1 -0.1 +0.1 0.40 -0.1 1 Gate 11.. SBoauserce 2 Drain 22.. DCroallienctor 333..
