Kingtronics 2SC2714
NPN BIPOLAR TRANSISTOR
| Part No. | 2SC2714 |
|---|---|
| Datasheet | 2SC2714 Download |
| Manufacturer |  Kingtronics |
| Description | NPN BIPOLAR TRANSISTOR |
| Buy | Stock & Price |
FEATURES
Small reverse transfer capacitance Low Noise Surface Mount device SOT-23MECHANICAL DATA

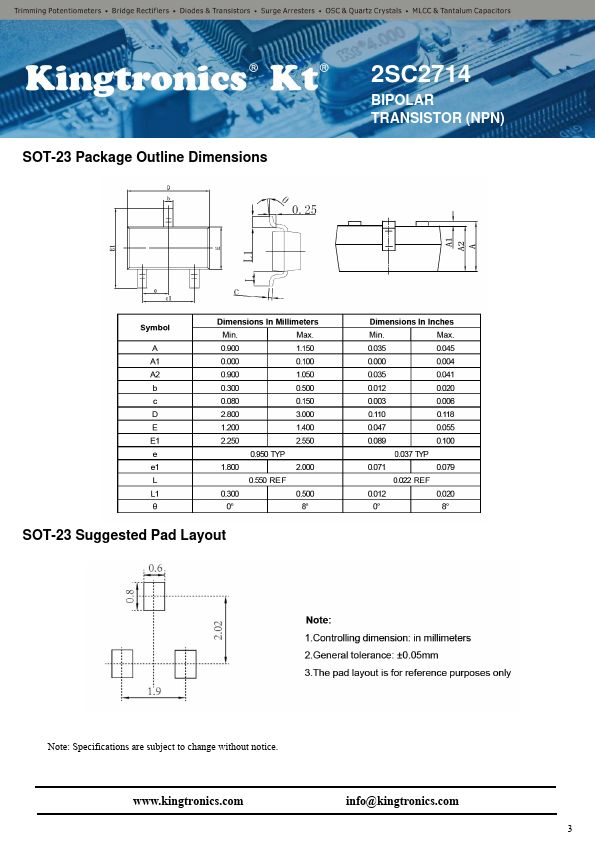

Case: SOT-23 Case Material: Molded Plastic. UL flammability Classification Rating: 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Weight: 0.008 grams (approximate)MAXIMUM RATINGS
(TA = 25°C unless otherwise noted) PARAMETER Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Thermal Resistance From Junction To Ambient Junction Temperature Storage Temperature SYMBOL VCBO VCEO VEBO IC PC RθJA TJ Tstg VALUE 40 30 4 20 100 1000 125 -55～+150 UNIT V V V mA mW ℃/W ℃ ℃ELECTRICAL CHARACTERISTICS
(TA = 25°C unless otherwise specified) PARAMETER Collector-base breakdown voltage Collector-emitter breakdown voltage Emitter-base breakdown voltage Collector cut-off current Emitter cut-off current DC current gain Transition frequency Reverse transfer capacitance Noise figure SYMBOL V(BR)CBO V(BR)CEO V(BR)EBO ICBO IEBO hFE fT CRE NF MIN. 40 30 4 40 TYP MAX.
