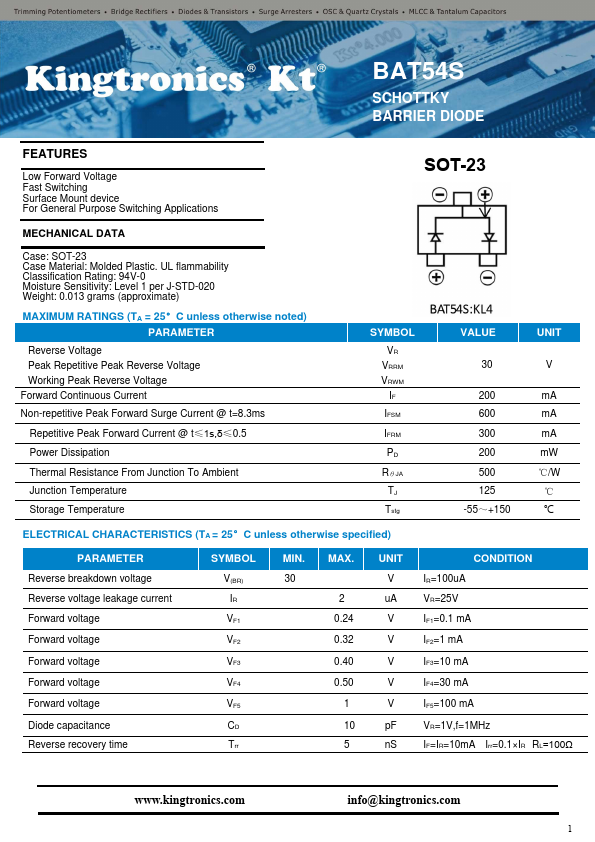

BAT54S
BAT54S is SCHOTTKY BARRIER DIODE manufactured by Kingtronics.
SCHOTTKY BARRIER DIODE
Features
Low Forward Voltage Fast Switching Surface Mount device For General Purpose Switching Applications

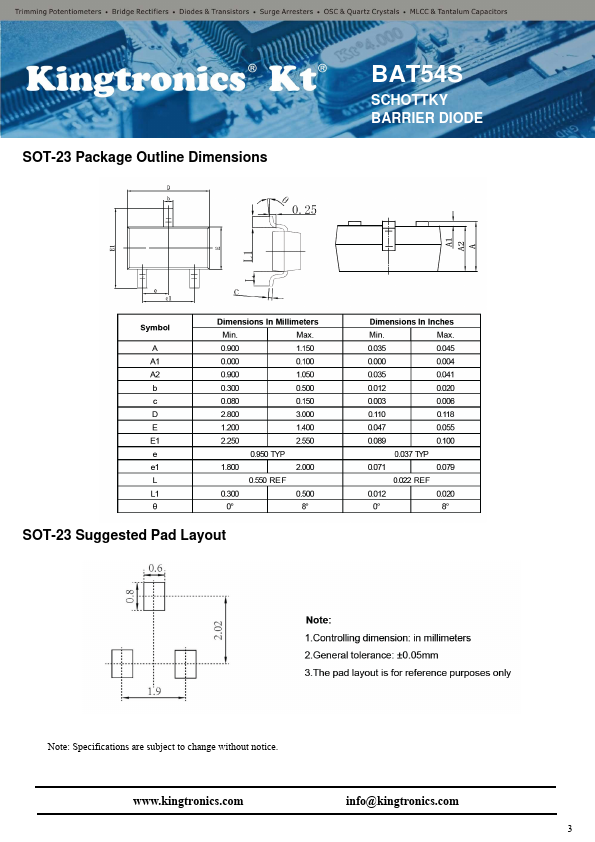

SOT-23
MECHANICAL DATA
Case: SOT-23 Case Material: Molded Plastic. UL flammability Classification Rating: 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Weight: 0.013 grams (approximate)
MAXIMUM RATINGS (TA = 25°C unless otherwise noted) PARAMETER
Reverse Voltage Peak Repetitive Peak Reverse Voltage Working Peak Reverse Voltage Forward Continuous Current
Non-repetitive Peak Forward Surge Current @ t=8.3ms
Repetitive Peak Forward Current @ t≤1s,δ≤0.5
Power Dissipation
Thermal Resistance From Junction To Ambient
Junction Temperature
Storage...
