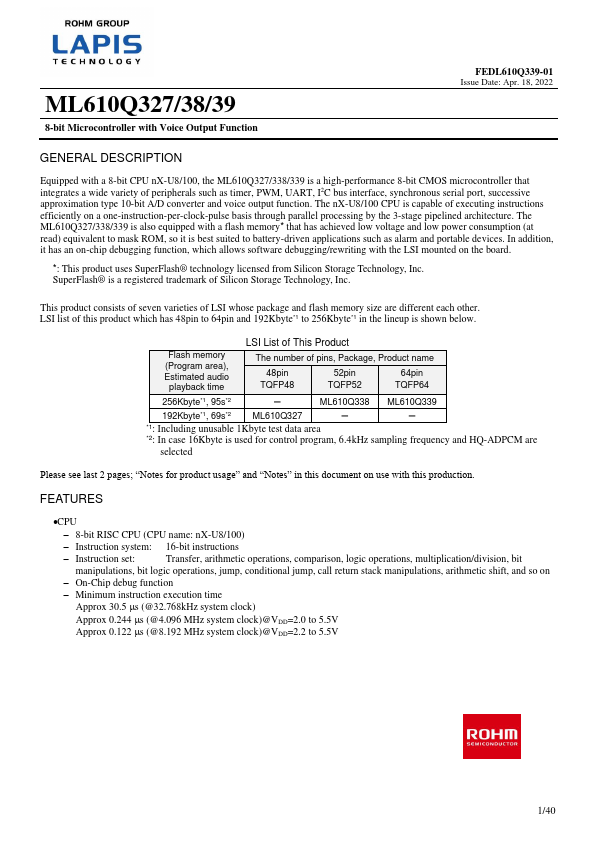

DESCRIPTION Equipped with a 8-bit CPU n X-U8/100, the ML610Q327/338/339 is a high-performance 8-bit CMOS microcontroller that integrates a wide variety of peripherals such as timer, PWM, UART, I2C bus interface, synchronous serial port, successive approximation type 10-bit A/D converter and voice output function. The n X-U8/100 CPU is capable of executing instructions efficiently on a one-instruction-per-clock-pulse basis through parallel processing by the 3-stage pipelined architecture. The ML610Q327/338/339 is also equipped with a flash memory- that has achieved low voltage and low power consumption (at read) equivalent to mask ROM, so it is best suited to battery-driven applications such as alarm and portable devices. In addition, it has an on-chip debugging function, which allows software debugging/rewriting with the LSI mounted on the board. - : This product uses Super Flash® technology licensed from Silicon Storage Technology, Inc. Super Flash® is a registered trademark of Silicon Storage Technology, Inc. This product consists of seven varieties of LSI whose package and flash memory size are different each other. LSI list of this product which has 48pin to 64pin and 192Kbyte- 1 to 256Kbyte- 1 in the lineup is shown below. LSI List of This Product Flash memory (Program area), Estimated audio playback time The number of pins, Package, Product name 48pin TQFP48 52pin TQFP52 64pin TQFP64 256Kbyte- 1, 95s- 2 － ML610Q338 ML610Q339 192Kbyte- 1, 69s- 2 － － - 1: Including unusable 1Kbyte test data area - 2: In case 16Kbyte is used for control program, 6.4k Hz sampling frequency and HQ-ADPCM are selected Please see last 2 pages; “Notes for product usage” and “Notes” in this document on use with this production. FEATURES - CPU - 8-bit RISC CPU (CPU name: n X-U8/100) - Instruction system: 16-bit instructions - Instruction set: Transfer, arithmetic operations, parison, logic operations, multiplication/division, bit manipulations, bit logic operations,...
