ML610Q329 - 8-bit Microcontroller

This page provides the datasheet information for the ML610Q329, a member of the ML610Q327 8-bit Microcontroller family.

Description

Equipped with a 8-bit CPU nX-U8/100, the ML610Q327/338/339 is a high-performance 8-bit CMOS microcontroller that integrates a wide variety of peripherals such as timer, PWM, UART, I2C bus interface, synchronous serial port, successive approximation type 10-bit A/D converter and voice output function

Features

  • CPU.
  • 8-bit RISC CPU (CPU name: nX-U8/100).
  • Instruction system: 16-bit instructions.
  • Instruction set: Transfer, arithmetic operations, comparison, logic operations, multiplication/division, bit manipulations, bit logic operations, jump, conditional jump, call return stack manipulations, arithmetic shift, and so on.
  • On-Chip debug function.
  • Minimum instruction execution time Approx 30.5 s (@32.768kHz system clock) Approx 0.244 s (@4.

📥 Download Datasheet

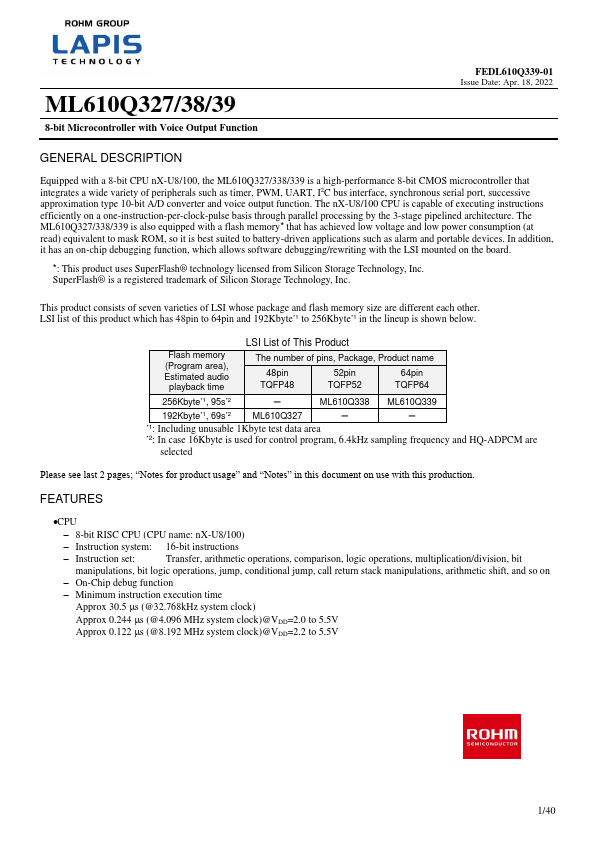

Datasheet preview – ML610Q329

Datasheet Details

Part number ML610Q329
Manufacturer LAPIS
File Size 1.00 MB
Description 8-bit Microcontroller
Datasheet download datasheet ML610Q329 Datasheet

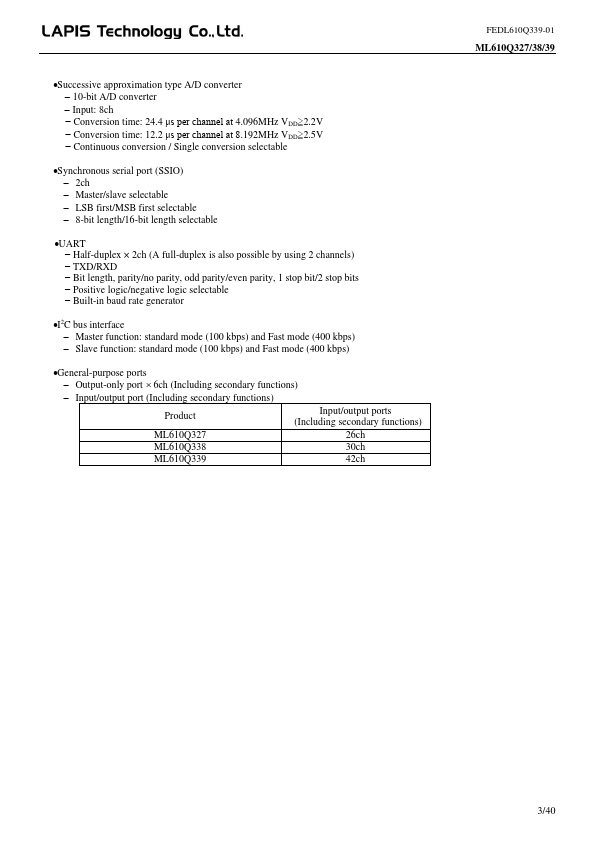

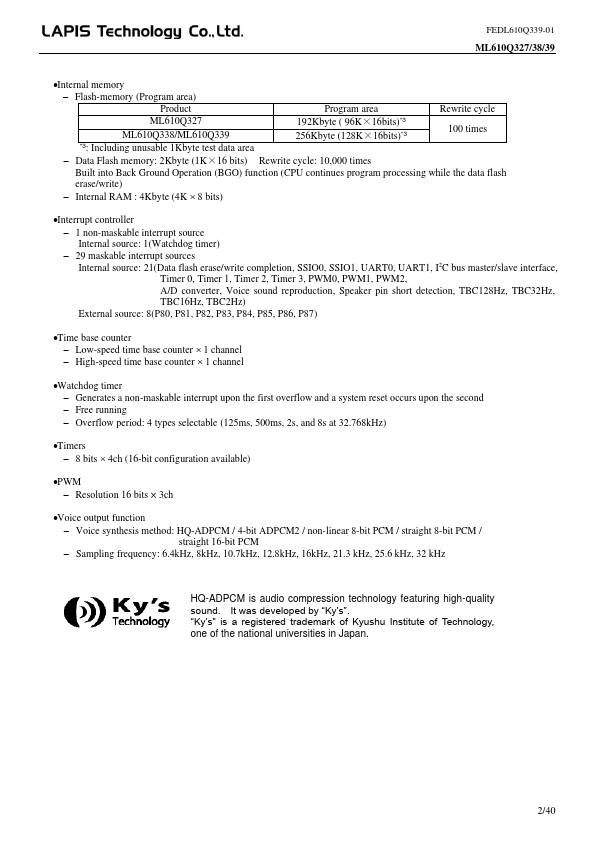

Additional preview pages of the ML610Q329 datasheet.

📁 Similar Datasheet

  • ML610Q304 - 8-bit Microcontroller (LAPIS Semiconductor)
  • ML610Q340 - 8-bit Microcontroller (LAPIS Semiconductor)
  • ML610Q346 - 8-bit Microcontroller (LAPIS Semiconductor)
  • ML610Q347 - 8-bit Microcontroller (LAPIS Semiconductor)
  • ML610Q359 - 8-bit Microcontroller (LAPIS Semiconductor)
  • ML610Q360 - 8-bit Microcontroller (LAPIS Semiconductor)
  • ML610Q380 - 8-bit Microcontroller (LAPIS Semiconductor)
  • ML610Q383 - 8-bit Microcontroller (LAPIS Semiconductor)
  • ML610Q384 - 8-bit Microcontroller (LAPIS Semiconductor)
  • ML610Q385 - 8-bit Microcontroller (LAPIS Semiconductor)
Other Datasheets by LAPIS

Full PDF Text Transcription

Click to expand full text
ML610Q327/38/39 8-bit Microcontroller with Voice Output Function FEDL610Q339-01 Issue Date: Apr. 18, 2022 GENERAL DESCRIPTION Equipped with a 8-bit CPU nX-U8/100, the ML610Q327/338/339 is a high-performance 8-bit CMOS microcontroller that integrates a wide variety of peripherals such as timer, PWM, UART, I2C bus interface, synchronous serial port, successive approximation type 10-bit A/D converter and voice output function. The nX-U8/100 CPU is capable of executing instructions efficiently on a one-instruction-per-clock-pulse basis through parallel processing by the 3-stage pipelined architecture.
