ML9077 - Power-saving solar power supply control LSI

General Description

ML9077 controls charging an energy harvester current to a rechargeable battery.

The control circuit is consists of a overcharge prevention circuit, a charge control circuit and a rechargeable battery voltage monitor circuit.

Each circuit performs following operation.

Overcharge prevention circ

Key Features

  • Self control the energy harvester current for charging a rechargeable battery.
  • Direct charge energy harvester current (ISC) to a rechargeable battery.
  • [VSC＞2.0V, ISC≦1mA conditions]: Potential difference=Max 0.1V （VSC-VBAT）.
  • [VSC≦2.0V, ISC≦1mA conditions]: Potential difference=Max 2.0V （VSC-VBAT）.
  • 2 Selectable overcharge prevention voltage.
  • 2 Selectable low voltage detection voltage.
  • Power supply system detects a low voltage of.

📥 Download Datasheet

Datasheet Details

Part number ML9077
Manufacturer LAPIS
File Size 537.82 KB
Description Power-saving solar power supply control LSI
Datasheet download datasheet ML9077 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ML9040 DOT MATRIX LCD CONTROLLER WITH 16-DOT COMMON DRIVER AND 40-DOT SEGMENT DRIVER OKI electronic componets
ML9040-Axx DOT MATRIX LCD CONTROLLER WITH 16-DOT COMMON DRIVER AND 40-DOT SEGMENT DRIVER OKI electronic componets
ML9040-Bxx DOT MATRIX LCD CONTROLLER WITH 16-DOT COMMON DRIVER AND 40-DOT SEGMENT DRIVER OKI electronic componets
ML9041 DOT MATRIX LCD CONTROLLER DRIVER OKI electronic componets
ML9044 DOT MATRIX LCD CONTROLLER DRIVER OKI electronic componets

Other Datasheets by LAPIS

Part Number Description
ML9042-01 DOT MATRIX LCD CONTROLLER DRIVER
ML9058E 132-Channel LCD Driver
ML9059E 132-Channel LCD Driver
ML9092-01 LCD Driver
ML9092-02 LCD Driver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

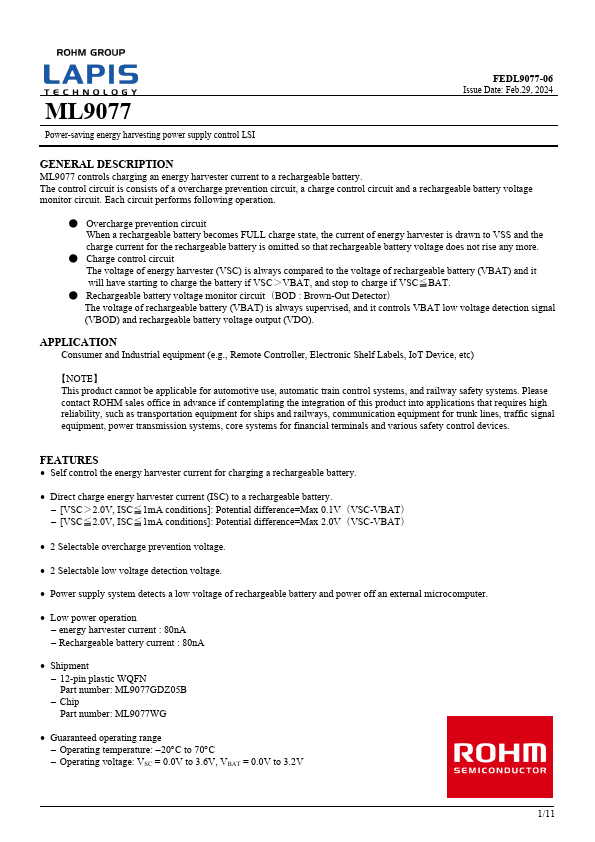

ML9077 Power-saving energy harvesting power supply control LSI FEDL9077-06 Issue Date: Feb.29, 2024 GENERAL DESCRIPTION ML9077 controls charging an energy harvester current to a rechargeable battery. The control circuit is consists of a overcharge prevention circuit, a charge control circuit and a rechargeable battery voltage monitor circuit. Each circuit performs following operation. ● Overcharge prevention circuit When a rechargeable battery becomes FULL charge state, the current of energy harvester is drawn to VSS and the charge current for the rechargeable battery is omitted so that rechargeable battery voltage does not rise any more.
