LB058WQ1-SD01 Datasheet LCD

Manufacturer: LG Electronics

LB058WQ1-SD01 lcd by LG Electronics - Datasheet Preview

Datasheet Details

Part number	LB058WQ1-SD01
Manufacturer	LG Electronics
File Size	12.36 MB
Description	LCD
Download	LB058WQ1-SD01 Download (PDF)

General Description

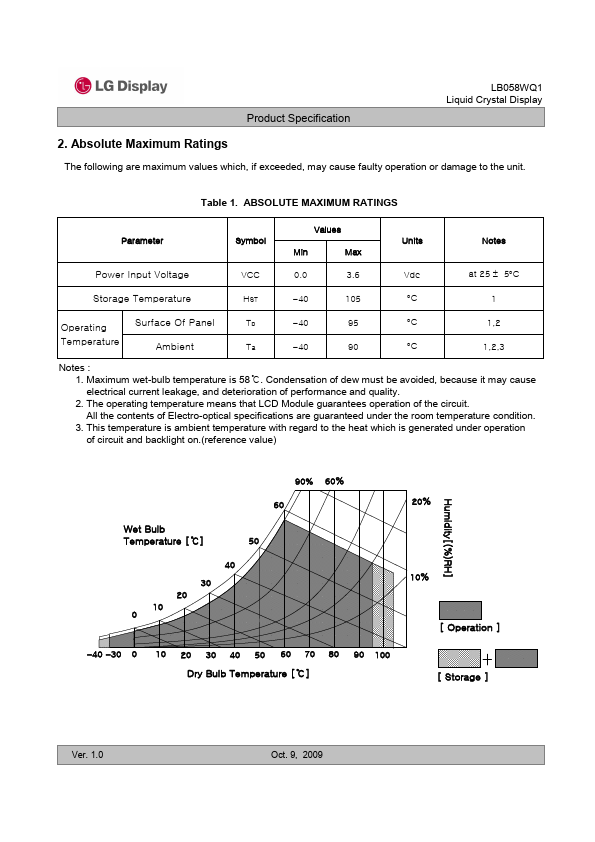

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERNECE POWER SEQUENCE Thermistor OPTICAL SFECIFICATIONS MECHANICAL CHARACTERISTICS RELIABLITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS Oct.

9, 2009 24 25 26 23 23 6 8 9 11 12 13 14 15 19 22 ITEM Page 1 2 3 4 5 Datasheet pdf - http://www.DataSheet4U.net/ www.DataSheet.co.kr LB058WQ1 Liquid Crystal Display Product Specification RECORD OF REVISIONS Revision No Revision Date 1.0 Oct.

9, 2009 Page Final Description Ver.

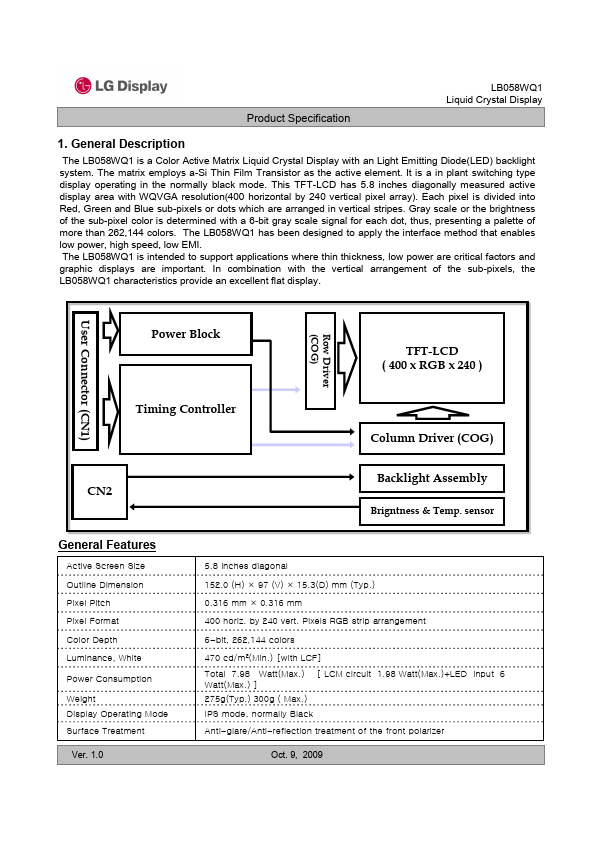

Overview

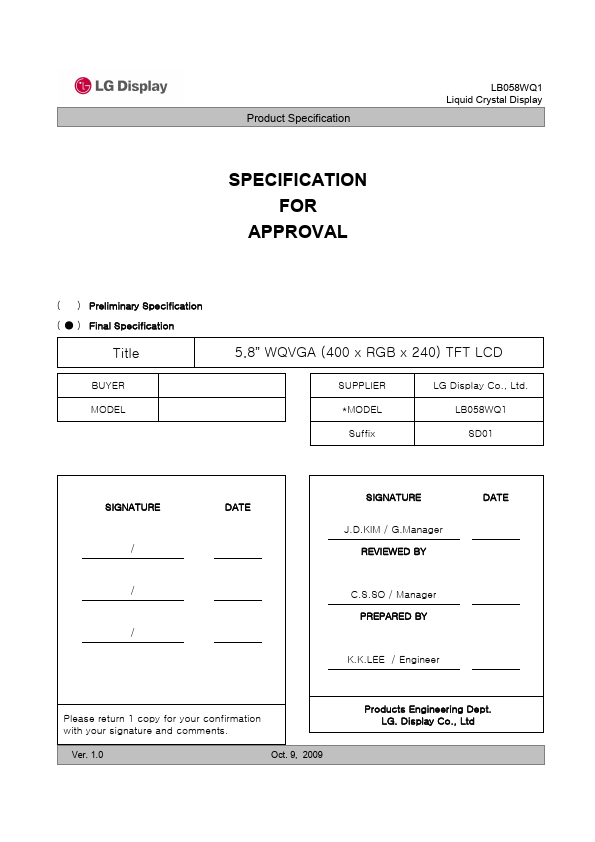

www.DataSheet.co.kr LB058WQ1 Liquid Crystal Display Product Specification SPECIFICATION FOR APPROVAL ( ) Preliminary Specification ( ● ) Final Specification Title BUYER MODEL 5.8” WQVGA (400 x RGB x 240) TFT LCD SUPPLIER *MODEL Suffix LG Display Co., Ltd.

LB058WQ1 SD01 SIGNATURE DATE SIGNATURE J.D.KIM / G.Manager DATE / REVIEWED BY / C.S.SO / Manager PREPARED BY / K.K.LEE / Engineer Please return 1 copy for your confirmation with your signature and comments.

Ver.

Key Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Power Consumption Weight Display Operating Mode Surface Treatment Ver. 1.0 5.8 inches diagonal 152.0 (H) × 97 (V) × 15.3(D) mm (Typ. ) 0.316 mm × 0.316 mm 400 horiz. by 240 vert. Pixels RGB strip arrangement 6-bit, 262,144 colors 470 cd/m2(Min. ) [with LCF] Total 7.98 Watt(Max. ) Watt(Max. ) ] 275g(Typ. ) 300g ( Max. ) IPS mode, normally Black Anti-glare/Anti-reflection treatment of the front polarizer Oct. 9, 2.
