LC550EUN-SFM2 Datasheet Wuxga Tft Lcd

Manufacturer: LG Electronics

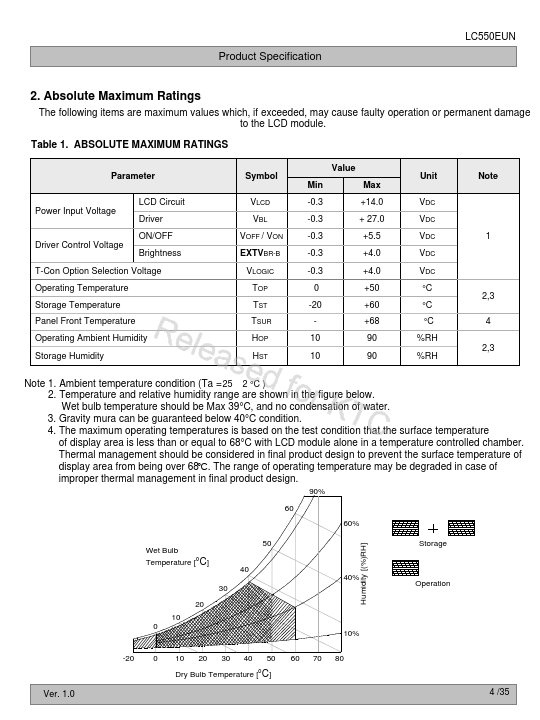

Overview: Product Specification SPECIFICATION FOR APPROVAL LC550EUN ( ● ) Preliminary Specification ( ) Final Specification Title 55.0” WUXGA TFT LCD BUYER MODEL General SUPPLIER LG Display Co., Ltd. *MODEL LC550EUN SUFFIX SFM2 (RoHS Verified) *When you obtain standard approval, please use the above model name without suffix APPROVED BY / SIGNATURE DATE APPROVED BY O. H. Lee / Team Leader SIGNATURE DATE REVIEWED BY J.K. Kim / / Project Leader PREPARED BY K. B. Park / / Engineer Please return 1 copy for your confirmation with your signature and ments. Ver. 1.0 PD Product Design Dept. LG Display Co.

General Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR DATA REFERENCE POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC ENVIRONMENT PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS MOUNTING PRECAUTIONS OPERATING PRECAUTIONS ELECTROSTATIC DISCHARGE CONTROL PRECAUTIONS FOR STRONG LIGHT EXPOSURE STORAGE Ver.

1.0 LC550EUN Page 0 1 2 3 4 5 5 7 9 10 13 14 16 20 23 24 24 24 24 25 25 25 26 26 26 27 27 27 1 /35 Product Specification LC550EUN RECORD OF REVISIONS Revision No.

Revision Date 0.0 Feb,8, 2013 0.1 Jul,10, 2013 1.0 Aug,14, 2013 Page - Description Preliminary Specification(First Draft) Changed model name(LC550EUN-SFM1  LC550EUN-SFM2) Final specification Ver.

Key Features

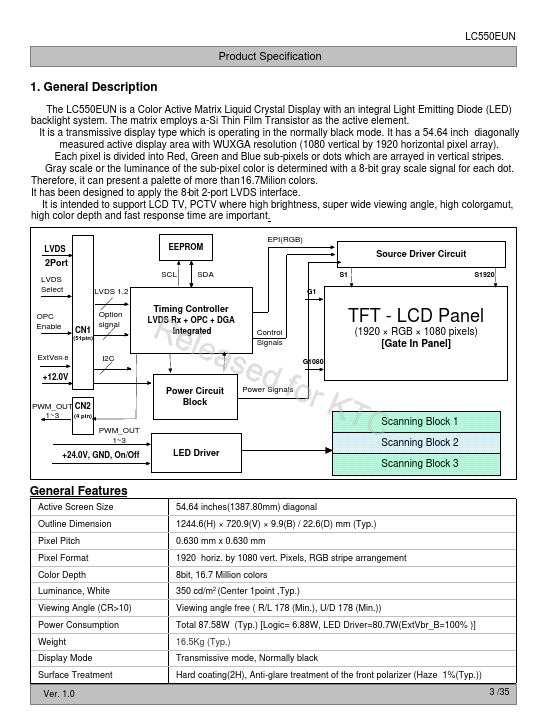

  • Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Viewing Angle (CR>10) Power Consumption Weight Display Mode Surface Treatment Ver. 1.0 54.64 inches(1387.80mm) diagonal 1244.6(H) × 720.9(V) × 9.9(B) / 22.6(D) mm (Typ. ) 0.630 mm x 0.630 mm 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement 8bit, 16.7 Million colors 350 cd/m2 (Center 1point ,Typ. ) Viewing angle free ( R/L 178 (Min. ), U/D 178 (Min. )) Total 87.58W (Typ. ) [Logic= 6.88W, LED Driver=80.7.
