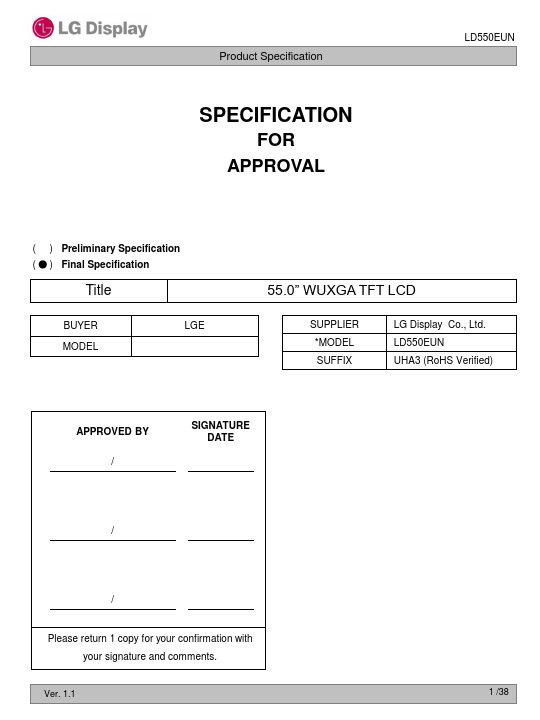

LD550EUN-UHA3

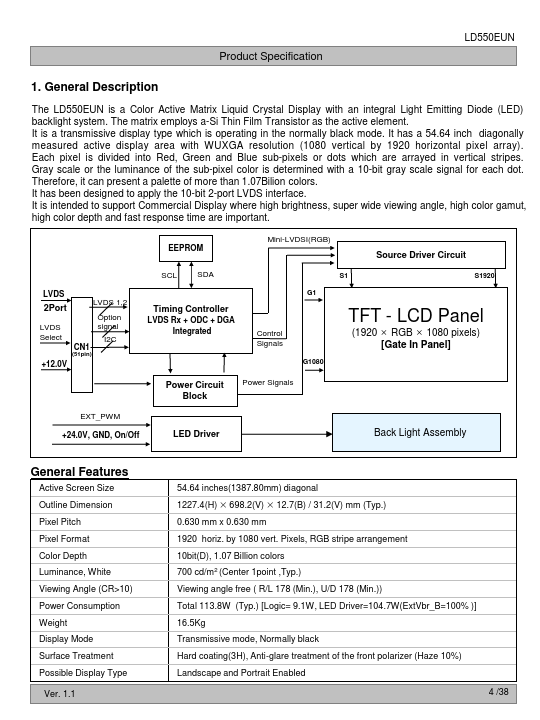

Description
The LD550EUN is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED) backlight system. The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive display type which is operating in the normally black mode. It has a 54.64 inch diagonally measured active display area with WUXGA resolution (1080 vertical by 1920 horizontal pixel array). Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arrayed in vertical stripes. Gray scale or the luminance of the sub-pixel color is determined with a 10-bit gray scale signal for each dot. Therefore, it can present a palette of more than 1.07Bilion colors. It has been designed to apply the 10-bit 2-port LVDS interface. It is intended to support mercial Display where high brightness, super wide viewing angle, high color gamut, high color depth and fast response time are important.
LVDS 2Port
LVDS 1,2
Option
LVDS signal
Select
I2C
CN1
(51pin)
+...
