LM215WF3-SLA2 - Full HD TFT LCD

Datasheet Summary

Description

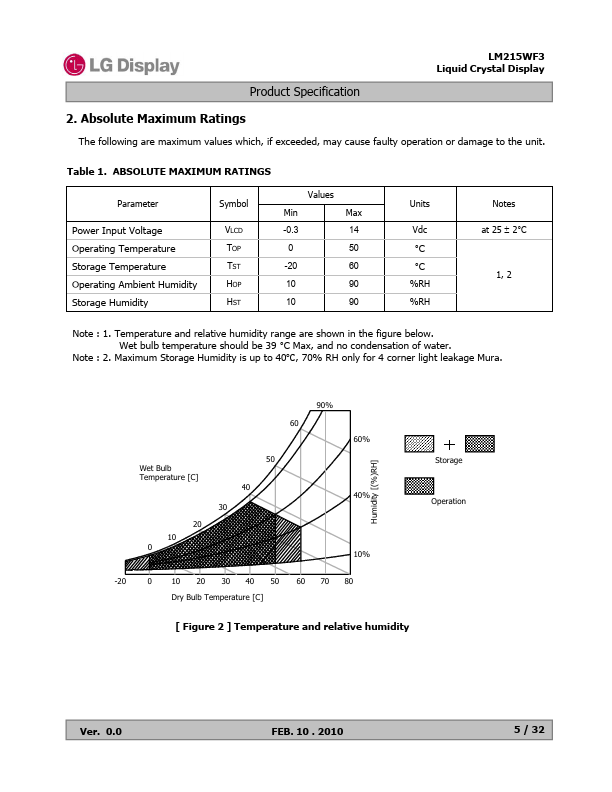

2 ABSOLUTE MAXIMUM RATINGS 3 ELECTRICAL SPECIFICATIONS 3-1 ELECTRICAL CHARACTREISTICS 3-2 INTERFACE CONNECTIONS 3-3 SIGNAL TIMING SPECIFICATIONS 3-4 SIGNAL TIMING WAVEFORMS 3-5 COLOR INPUT DATA REFERNECE 3-6 POWER SEQUENCE 3-7 VLCD Power Dip Condition 4 OPTICAL SFECIFICATIONS 5 MECHANICAL CHARACTE

Features

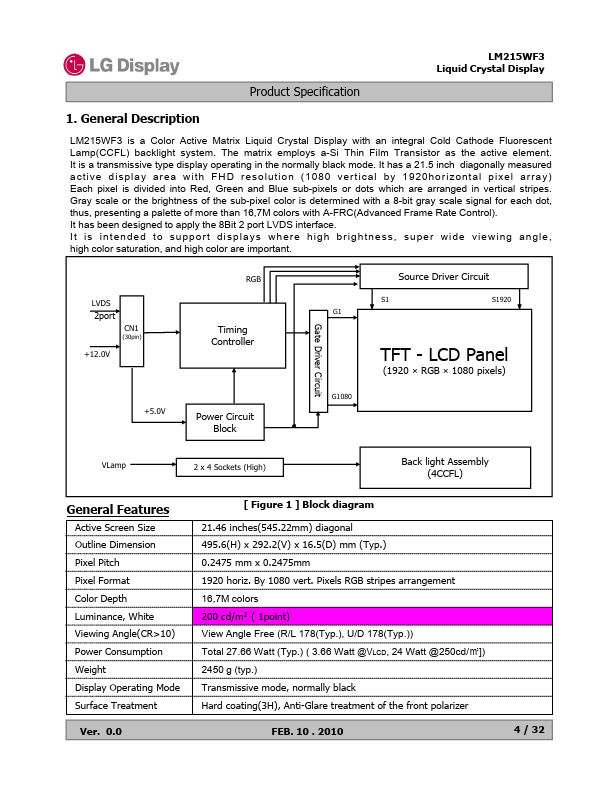

  • Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Viewing Angle(CR>10) Power Consumption Weight Display Operating Mode Surface Treatment Ver. 0.0 [ Figure 1 ] Block diagram 21.46 inches(545.22mm) diagonal 495.6(H) x 292.2(V) x 16.5(D) mm (Typ. ) 0.2475 mm x 0.2475mm 1920 horiz. By 1080 vert. Pixels RGB stripes arrangement 16,7M colors 200 cd/m2 ( 1point) View Angle Free (R/L 178(Typ. ), U/D 178(Typ. )) Total 27.66 Watt (Typ. ) ( 3.66 Watt @VLCD, 24 Watt @250.

📥 Download Datasheet

Datasheet preview – LM215WF3-SLA2

Datasheet Details

Part number LM215WF3-SLA2
Manufacturer LG
File Size 1.07 MB
Description Full HD TFT LCD
Datasheet download datasheet LM215WF3-SLA2 Datasheet
Additional preview pages of the LM215WF3-SLA2 datasheet.

📁 Similar Datasheet

Other Datasheets by LG

Full PDF Text Transcription

Click to expand full text

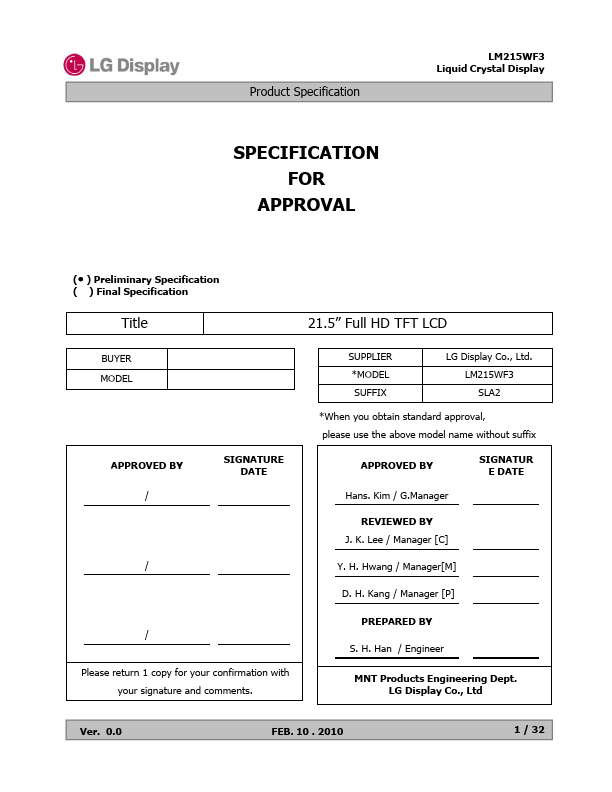

Global LCD Panel Exchange Center www.panelook.com Product Specification SPECIFICATION FOR APPROVAL LM215WF3 Liquid Crystal Display ( ) Preliminary Specification ( ) Final Specification Title 21.5” Full HD TFT LCD BUYER MODEL APPROVED BY / SIGNATURE DATE / / Please return 1 copy for your confirmation with your signature and comments. SUPPLIER *MODEL SUFFIX LG Display Co., Ltd. LM215WF3 SLA2 *When you obtain standard approval, please use the above model name without suffix APPROVED BY Hans. Kim / G.Manager SIGNATUR E DATE REVIEWED BY J. K. Lee / Manager [C] Y. H. Hwang / Manager[M] D. H. Kang / Manager [P] PREPARED BY S. H. Han / Engineer MNT Products Engineering Dept. LG Display Co., Ltd Ver. 0.0 FEB. 10 .
