LM300WQ6-SLA1 Datasheet Wqxga Tft Lcd

Manufacturer: LG Electronics

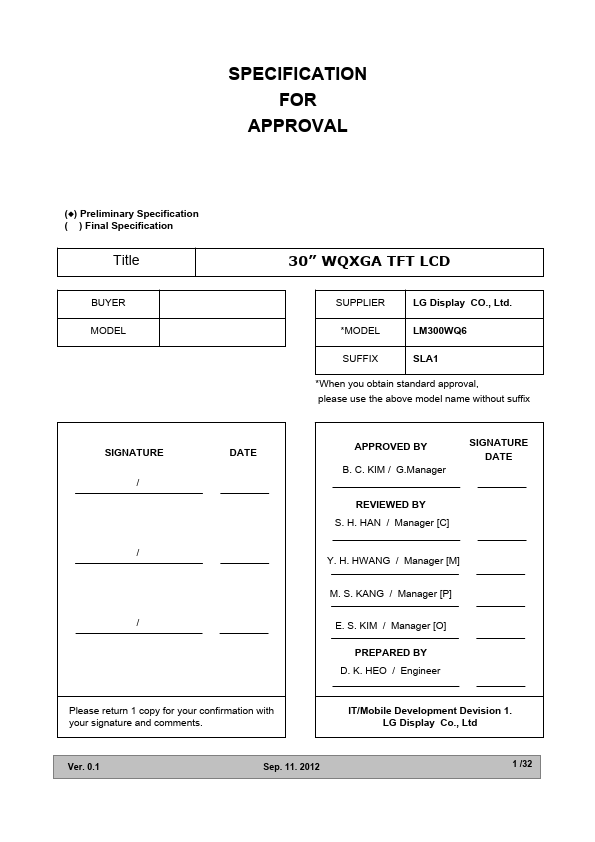

Overview: Global LCD Panel Exchange Center www.panelook.com Product Specification LM300WQ6 Liquid Crystal Display SPECIFICATION FOR APPROVAL (Ⴗ) Preliminary Specification ( ) Final Specification Title BUYER MODEL 30” WQXGA TFT LCD SUPPLIER LG Display CO., Ltd. *MODEL LM300WQ6 SUFFIX SLA1 *When you obtain standard approval, please use the above model name without suffix SIGNATURE / / / DATE APPROVED BY B. C. KIM / G.Manager SIGNATURE DATE REVIEWED BY S. H. HAN / Manager [C] Y. H. HWANG / Manager [M] M. S. KANG / Manager [P] E. S. KIM / Manager [O] PREPARED BY D. K. HEO / Engineer Please return 1 copy for your confirmation with your signature and comments. IT/Mobile Development Devision 1. LG Display Co., Ltd Ver. 0.1 Sep. 11. 2012 1 /32 One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com Global LCD Panel Exchange Center www.panelook.com Product Specification CONTENTS NO.

Datasheet Details

Part number	LM300WQ6-SLA1
Manufacturer	LG Electronics
File Size	0.98 MB
Description	WQXGA TFT LCD
Datasheet	LM300WQ6-SLA1-LG.pdf

General Description

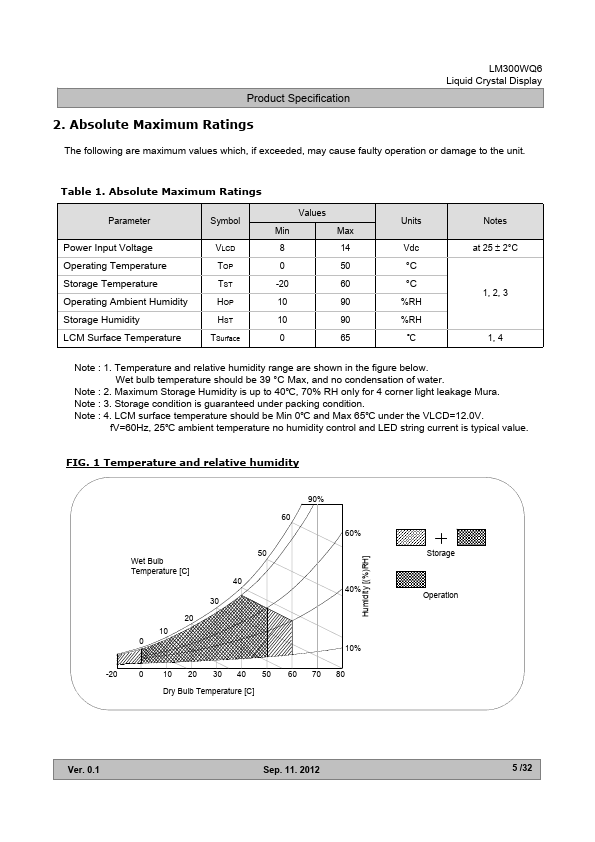

2 ABSOLUTE MAXIMUM RATINGS 3 ELECTRICAL SPECIFICATIONS 3-1 ELECTRICAL CHARACTERISTICS 3-2 INTERFACE CONNECTIONS 3-3 LVDS CHARACTERISTICS 3-4 SIGNAL TIMING SPECIFICATIONS 3-5 SIGNAL TIMING WAVE FORMS 3-6 COLOR INPUT DATA REFERANCE 3-7 POWER SEQUENCE FOR PANEL 3-8 POWER SEQUENCE FOR INVERTER 4 OPTICAL SPECIFICATIONS 5 MECHANICAL CHARACTERISTICS 6 RELIABILITY 7 INTERNATIONAL STANDARDS 7-1 SAFETY 7-2 EMC 8 PACKING 8-1 DESIGNATION OF LOT MARK 8-2 PACKING FORM 9 PRECAUTIONS LM300WQ6 Liquid Crystal Display Page 1 2 3 4 5 6 6 9 12 14 15 16 17 18 19 25 28 29 29 29 30 30 30 31 Ver.

0.1 Sep.

11.

Key Features

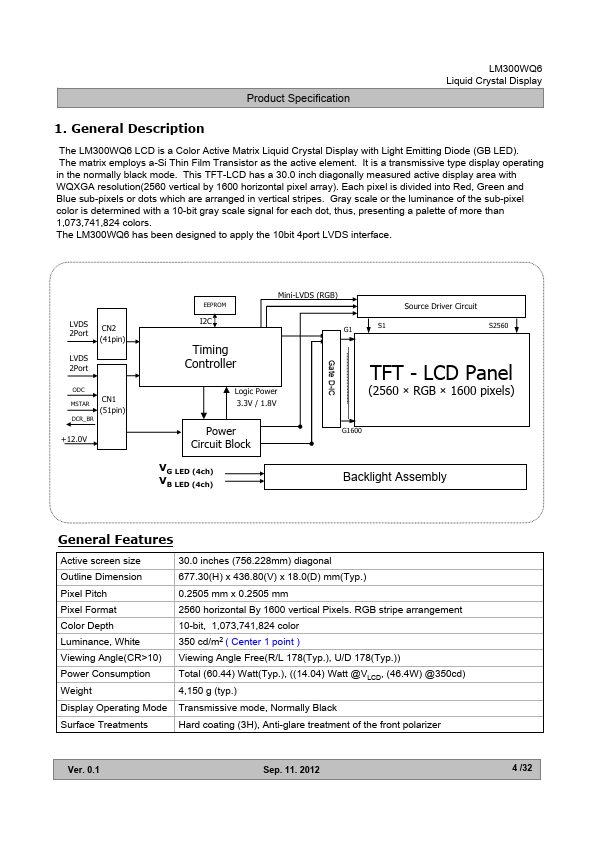

Active screen size 30.0 inches (756.228mm) diagonal Outline Dimension 677.30(H) x 436.80(V) x 18.0(D) mm(Typ. ) Pixel Pitch 0.2505 mm x 0.2505 mm Pixel Format 2560 horizontal By 1600 vertical Pixels. RGB stripe arrangement Color Depth 10-bit, 1,073,741,824 color Luminance, White 350 cd/m2 ( Center 1 point ) Viewing Angle(CR>10) Viewing Angle Free(R/L 178(Typ. ), U/D 178(Typ. )) Power Consumption Weight Total (60.44) Watt(Typ. ), ((14.04) Watt @VLCD, (46.4W) @350cd) 4,150 g (typ. ) Dis.
