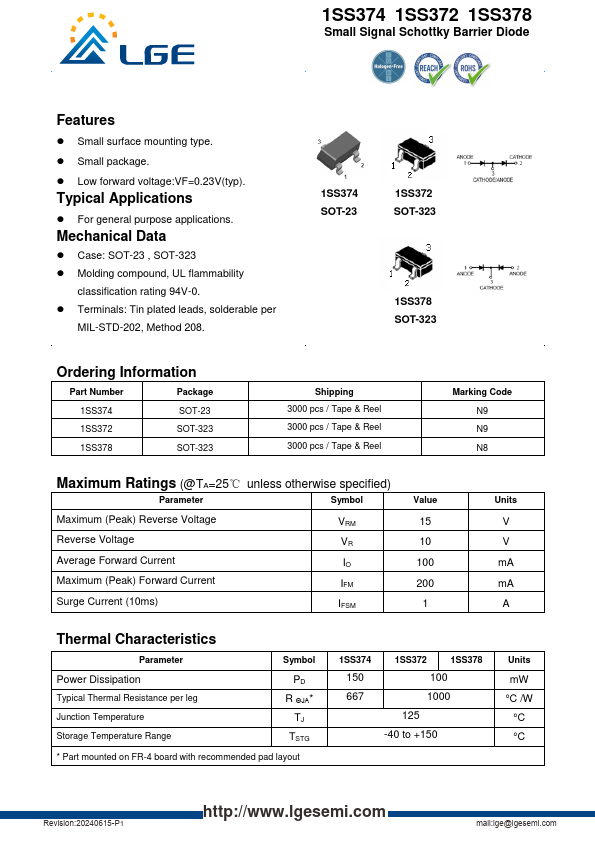

1SS372
1SS372 is Small Signal Schottky Barrier Diode manufactured by LGE.
1SS374 1SS372 1SS378
Small Signal Schottky Barrier Diode
Features
- Small surface mounting type.
- Small package.
- Low forward voltage:VF=0.23V(typ).
Typical Applications
- For general purpose applications.
Mechanical Data

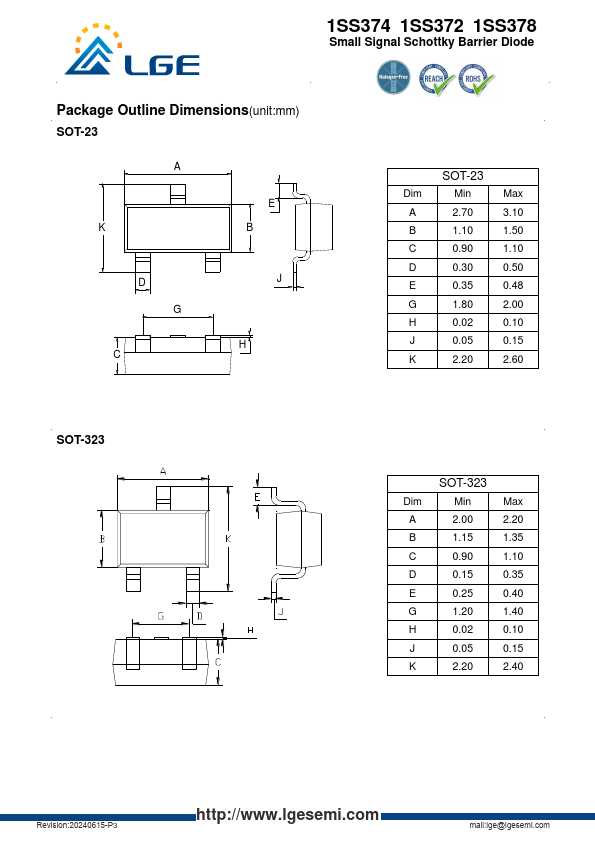

- Case: SOT-23 , SOT-323
- Molding pound, UL flammability classification rating 94V-0.
- Terminals: Tin plated leads, solderable per
MIL-STD-202, Method 208.
1SS374 SOT-23
1SS372 SOT-323
1SS378 SOT-323
Ordering Information
Part Number
Package
1SS374
SOT-23
SOT-323
1SS378
SOT-323
Shipping 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel
Marking Code N9 N9 N8
Maximum Ratings (@TA=25℃ unless otherwise specified)
Parameter
Symbo...
