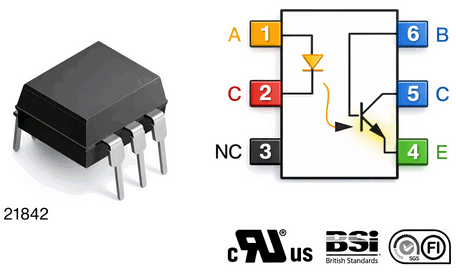

4N37

4N37 is Photocoupler manufactured by LITEON.

4N37 Datasheet

Part number	4N37
Download	4N37 Datasheet (PDF)
File Size	611.60 KB
Manufacturer	LITEON
Description	Photocoupler

Similar Part Number

Manufacturer	Part Number	Description
QT-BRIGHTEK QT-BRIGHTEK	4N37	6-PIN PHOTOTRANSISTOR OPTOCOUPLER
Fairchild	4N37	GENERAL PURPOSE 6-PIN PHOTOTRANSISTOR OPTOCOUPLERS
Motorola Semiconductor	4N37	6-Pin DIP Optoisolators
Toshiba	4N37	PHOTO TRANSISTOR
Vishay	4N37	Optocoupler

4N37 Description

Tape wide Pitch of sprocket holes Distance of partment Distance of partment to partment Symbol W P0 F P2 P1 Dimensions in mm ( inches ) 16  0.3 ( .63 ) 4  0.1 ( .15 ) 7.5  0.1 ( .295 ) 2  0.1 ( .079 ) 12  0.1 ( .472 ) Part No. : 4N35 / 4N37 ( M, S, S-TA1.

4N37 Key Features

High crrent transfer ratio ( CTR : MIN. 100% at IF = 10mA, VCE = 10V )
Response time ( ton : TYP. 3s at VCC = 10V, IC = 2mA, RL = 100 )
Dual-in-line package : 4N35, 4N37
Wide lead spacing package : 4N35M, 4N37M
Surface mounting package : 4N35S, 4N37S
Tape and reel packaging : 4N35S-TA1, 4N37S-TA1
Safety approval UL& cUL, VDE, FIMKO, CQC approved
RoHS pliant
1. Year date code. -2. 2-digit work week. -3. Factory identification mark shall be marked (Y : Thailand, X : China-TJ, W
1. Year date code. -2. 2-digit work week. -3. Factory identification mark shall be marked (Y : Thailand, X : China-TJ, W
