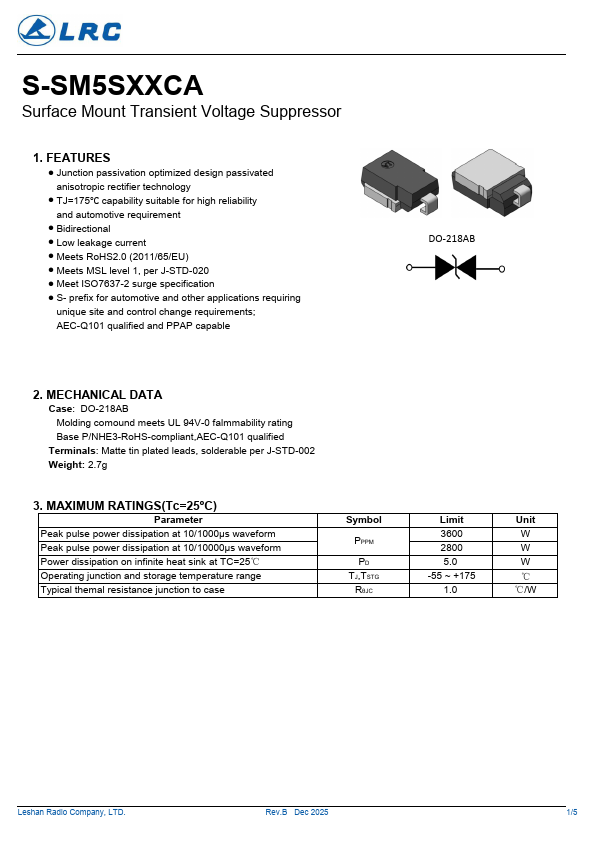

S-SM5S14CA
FEATURES
- Junction passivation optimized design passivated anisotropic rectifier technology
- TJ=175℃ capability suitable for high reliability and automotive requirement
- Bidirectional
- Low leakage current
- Meets Ro HS2.0 (2011/65/EU)
- Meets MSL level 1, per J-STD-020
- Meet ISO7637-2 surge specification
- S- prefix for automotive and other applications requiring unique site and control change requirements; AEC-Q101 qualified and PPAP capable
DO-218AB
2. MECHANICAL DATA
Case: DO-218AB Molding ound meets UL 94V-0 falmmability rating Base P/NHE3-Ro HS-pliant,AEC-Q101 qualified
Terminals: Matte tin plated leads, solderable per J-STD-002 Weight: 2.7g
3. MAXIMUM RATINGS(Tc=25ºC)
Parameter Peak pulse power dissipation at 10/1000μs waveform Peak pulse power dissipation at 10/10000μs waveform Power dissipation on infinite heat sink at TC=25℃ Operating junction and storage temperature range Typical themal resistance junction to case
Symbol
PPPM
PD TJ,TSTG
RθJC
Limit 3600 2800 5.0 -55 ~...
