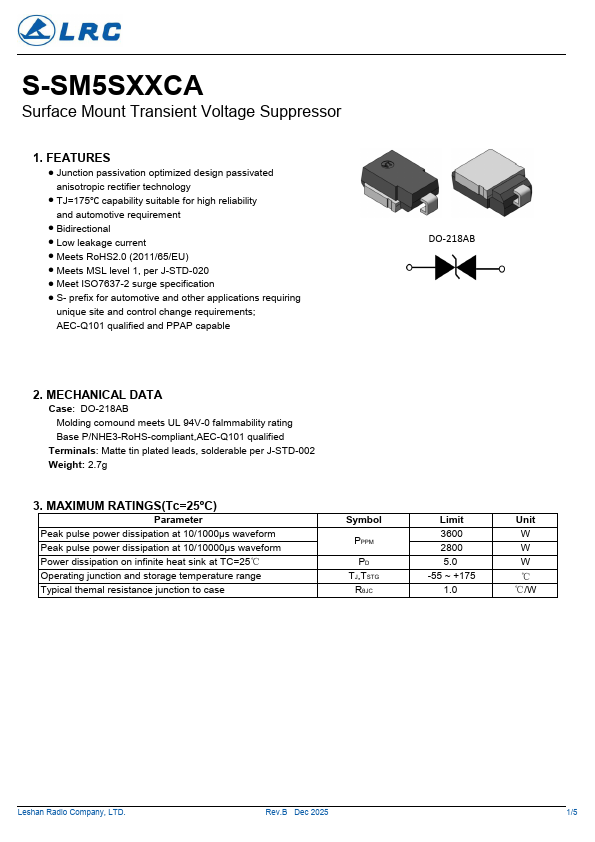

S-SM5S17CA Description
S-SM5SXXCA Surface Mount Transient Voltage Suppressor.
S-SM5S17CA Key Features
- Junction passivation optimized design passivated anisotropic rectifier technology
- TJ=175℃ capability suitable for high reliability and automotive requirement
- Bidirectional
- Low leakage current
- Meets RoHS2.0 (2011/65/EU)
- Meets MSL level 1, per J-STD-020
- Meet ISO7637-2 surge specification
- S- prefix for automotive and other
