LESHAN RADIO COMPANY, LTD.
Power MOSFET 200 mAmps, 50 Volts N–Channel SOT–23
Typical applications are dc–dc converters, power management in portable and battery–powered products such as computers,printers,
PCMCIA cards, cellular and cordless telephones.
LBSS138LT1G S-LBSS138LT1G
●FEATURES
1)Low Threshold Voltage (VGS(th): 0.5V...1.5V) makes it ideal for low voltage applications
2)Miniature SOT–23 Surface Mount Package saves board space
3)Pb−Free Package May be Available. The G−Suffix Denotes a Pb−Free Lead Finish
4)We declare that the material of product compliant with RoHS
requirements and Halogen Free. 5) S- Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable.

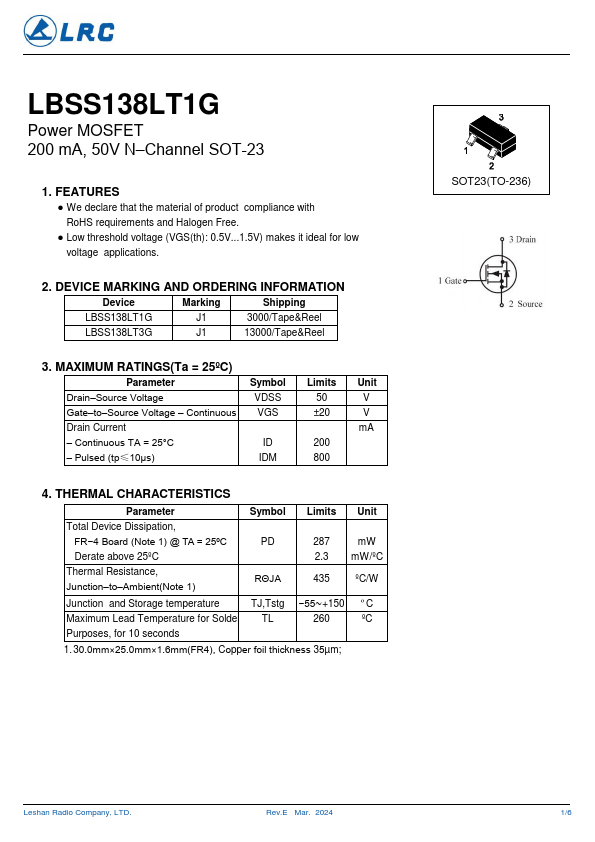

LBSS138LT1G Datasheet
