LT3493 - 750kHz Step-Down Switching Regulator

General Description

The LT®3493 is a current mode PWM step-down DC/DC converter with an internal 1.75A power switch.

Key Features

  • n n n n n n n n n n n.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LT3497 Dual Full Function White LED Driver Linear
LT3420 Photoflash Capacitor Chargers Linear
LT3420-1 Photoflash Capacitor Chargers Linear
LT3460-1 1.3 MHz/650kHz Step-Up DC/DC Converter Linear
LT3462 Inverting 1.2MHz/2.7MHz DC/DC Converters Linear

Other Datasheets by Linear Technology (now Analog Devices)

Part Number Description
LT3493-3 750kHz Step-Down Switching Regulator
LT3490 Single Cell 350mA LED Driver
LT3491 White LED Driver
LT3492 Triple Output LED Driver
LT3494 Micropower Low Noise Boost Converters

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

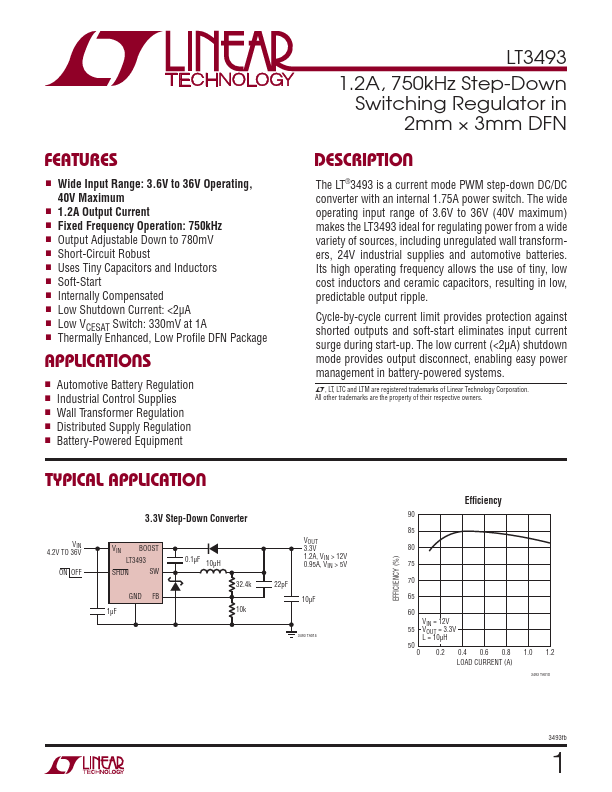

LT3493 1.2A, 750kHz Step-Down Switching Regulator in 2mm × 3mm DFN FEATURES n n n n n n n n n n n DESCRIPTION The LT®3493 is a current mode PWM step-down DC/DC converter with an internal 1.75A power switch. The wide operating input range of 3.6V to 36V (40V maximum) makes the LT3493 ideal for regulating power from a wide variety of sources, including unregulated wall transformers, 24V industrial supplies and automotive batteries. Its high operating frequency allows the use of tiny, low cost inductors and ceramic capacitors, resulting in low, predictable output ripple. Cycle-by-cycle current limit provides protection against shorted outputs and soft-start eliminates input current surge during start-up.
