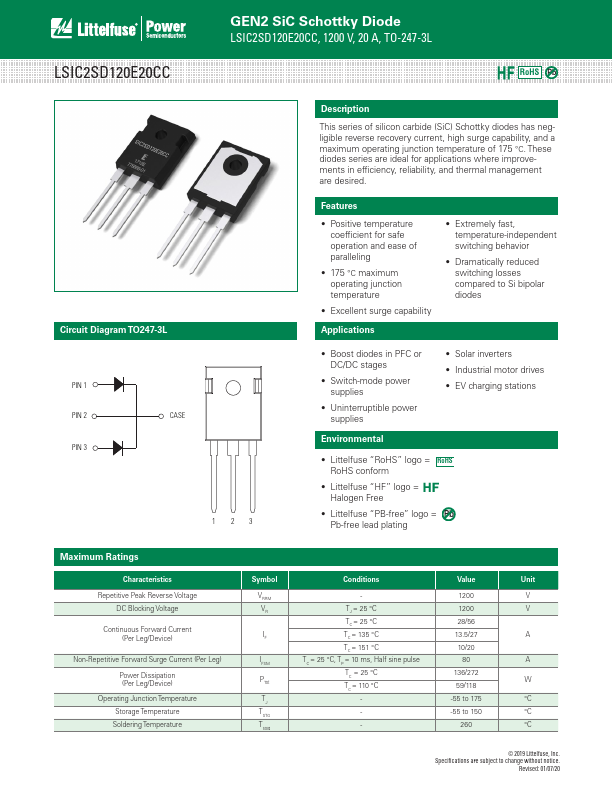

LSIC2SD120E20CC
LSIC2SD120E20CC is GEN2 SiC Schottky Diode manufactured by Littelfuse.
GEN2 SiC Schottky Diode
LSIC2SD120E20CC, 1200 V, 20 A, TO-247-3L
RoHS Pb
Circuit Diagram TO247-3L
PIN 1
PIN 2
CASE
PIN 3
1 23
Description
This series of silicon carbide (SiC) Schottky diodes has negligible reverse recovery current, high surge capability, and a maximum operating junction temperature of 175 °C. These diodes series are ideal for applications where improvements in efficiency, reliability, and thermal management are desired.
Features
- Positive temperature coefficient for safe operation and ease of paralleling
- 175 °C maximum operating junction temperature
- Excellent surge capability
Applications
- Extremely fast, temperature-independent...
