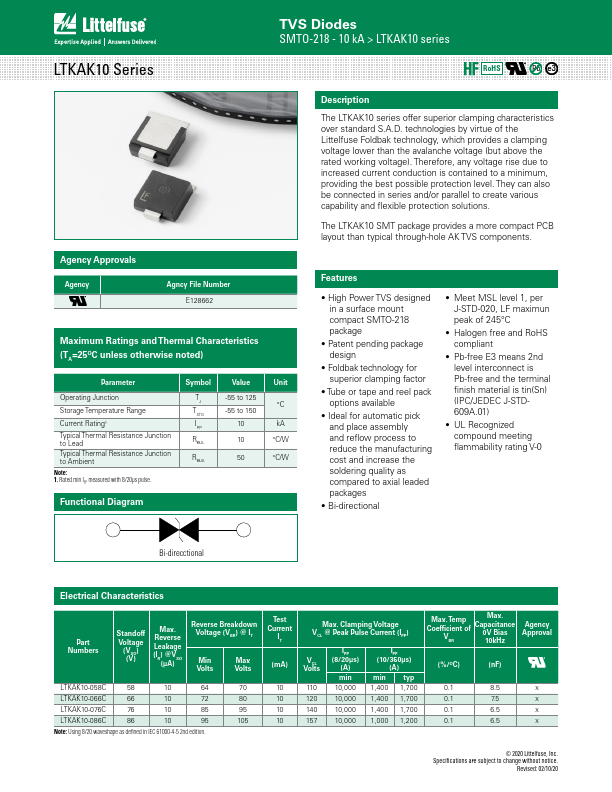

LTKAK10-058C Overview
The LTKAK10 series offer superior clamping characteristics over standard S.A.D. technologies by virtue of the Littelfuse Foldbak technology, which provides a clamping voltage lower than the avalanche voltage (but above the rated working voltage). Therefore, any voltage rise due to increased current conduction is contained to a minimum, providing the best possible protection level.
LTKAK10-058C Key Features
- High Power TVS designed in a surface mount pact SMTO-218 package
- Patent pending package design
- Foldbak technology for superior clamping factor
- Tube or tape and reel pack options available
- Ideal for automatic pick and place assembly and reflow process to reduce the manufacturing cost and increase the solderi
- Bi-directional
- Meet MSL level 1, per J-STD-020, LF maximun peak of 245°C
- Halogen free and RoHS pliant
- Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/JEDEC J-STD609A.01)
- UL Recognized pound meeting flammability rating V-0
