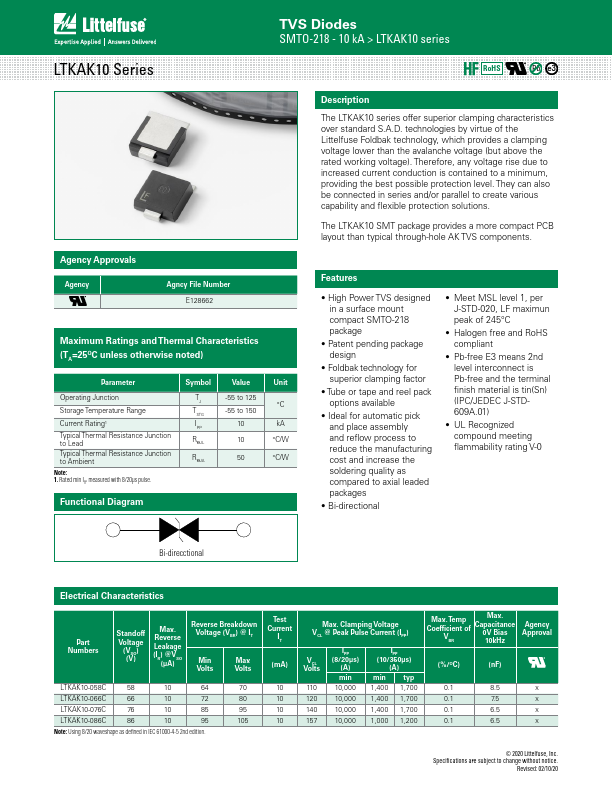

LTKAK10-086C Datasheet Tvs Diodes

Manufacturer: Littelfuse

Overview: LTKAK10 Series TVS Diodes SMTO-218 - 10 kA > LTKAK10 series RoHS Pb e3 Agency Approvals Agency Agncy File Number E128662 Maximum Ratings and Thermal Characteristics (TA=25OC unless otherwise noted) Parameter Operating Junction Storage Temperature Range Current Rating1 Typical Thermal Resistance Junction to Lead Typical Thermal Resistance Junction to Ambient Note: 1. Rated min IPP measured with 8/20μs pulse.

This datasheet includes multiple variants, all published together in a single manufacturer document.

General Description

The LTKAK10 series offer superior clamping characteristics over standard S.A.D.

technologies by virtue of the Littelfuse Foldbak technology, which provides a clamping voltage lower than the avalanche voltage (but above the rated working voltage).

Therefore, any voltage rise due to increased current conduction is contained to a minimum, providing the best possible protection level.

Key Features

  • High Power TVS designed in a surface mount compact SMTO-218 package.
  • Patent pending package design.
  • Foldbak technology for superior clamping factor.
  • Tube or tape and reel pack options available.
  • Ideal for automatic pick and place assembly and reflow process to reduce the manufacturing cost and increase the soldering quality as compared to axial leaded packages.
  • Bi-directional.
  • Meet MSL level 1, per J-STD-020, LF maximun peak of 24.
