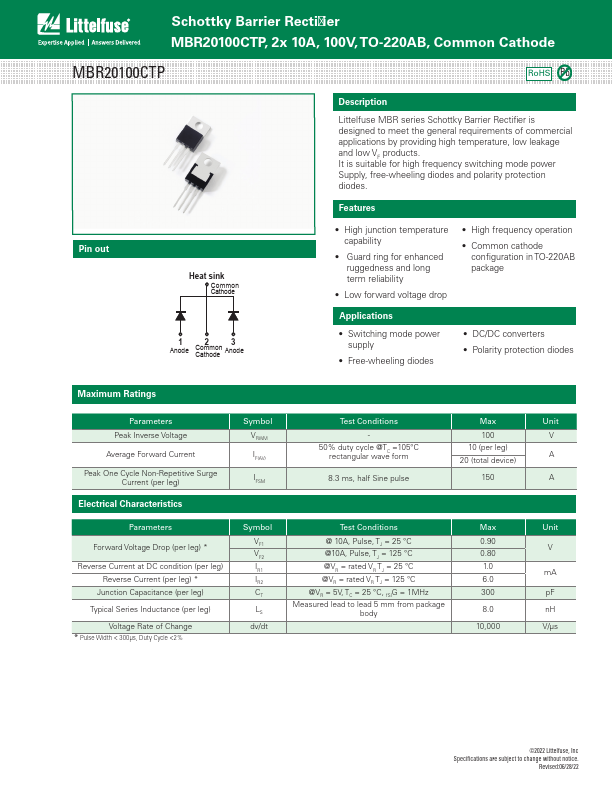

MBR20100CTP
MBR20100CTP is Schottky Barrier Rectifier manufactured by Littelfuse.
Schottky Barrier Rectif ier MBR20100CTP, 2x 10A, 100V, TO-220AB, mon Cathode
RoHS Pb
Description
Littelfuse MBR series Schottky Barrier Rectifier is designed to meet the general requirements of mercial applications by providing high temperature, low leakage and low VF products. It is suitable for high frequency switching mode power Supply, free-wheeling diodes and polarity protection diodes.
Features
Pin out
Heat sink mon Cathode
Heat sink mon Cathode
- High junction temperature capability
- Guard ring for enhanced ruggedness and long term reliability
- Low forward voltage drop
- High frequency operation
- mon cathode configuration in TO-220AB...
