MA4P202-120 - Packaged PIN Diodes

This page provides the datasheet information for the MA4P202-120, a member of the MA4P203-30_MA Packaged PIN Diodes family.

Datasheet Summary

Description

M/A-COM's broad line of packaged PIN diodes encompasses a comprehensive range of electrical characteristics and package outlines.

This diverse union of semiconductor technology and chip packaging gives considerable flexibility to the circuit designer.

Features

  • High Power Fast Speed Voltage Ratings to 1500 Volts Wide Selection of Carrier Lifetimes Wide Selection of Capacitances Assortment of Packages Styles Available Screened for Military.

📥 Download Datasheet

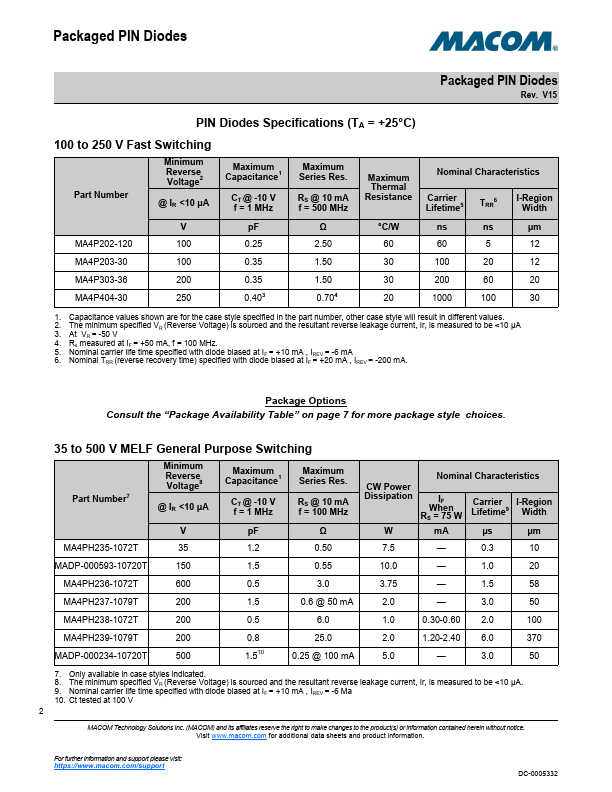

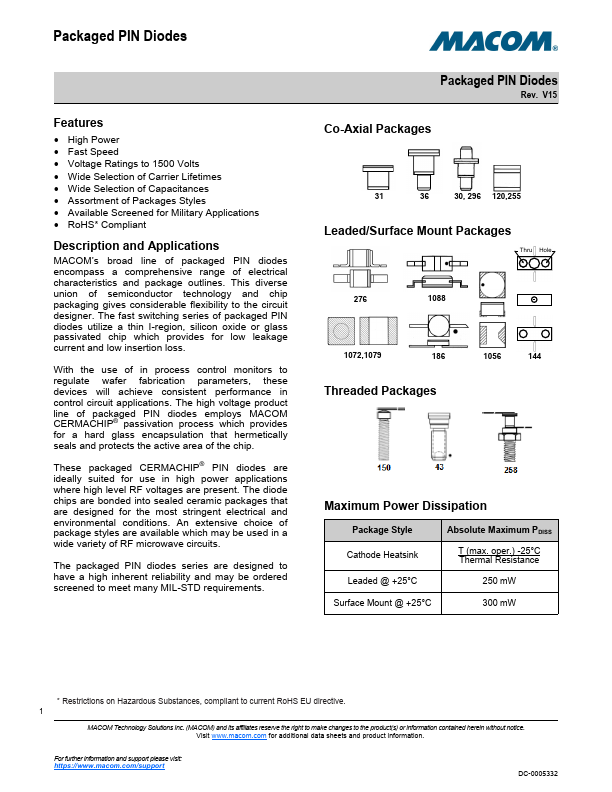

Datasheet preview – MA4P202-120

Datasheet Details

Part number MA4P202-120
Manufacturer MA-COM
File Size 431.03 KB
Description Packaged PIN Diodes
Datasheet download datasheet MA4P202-120 Datasheet

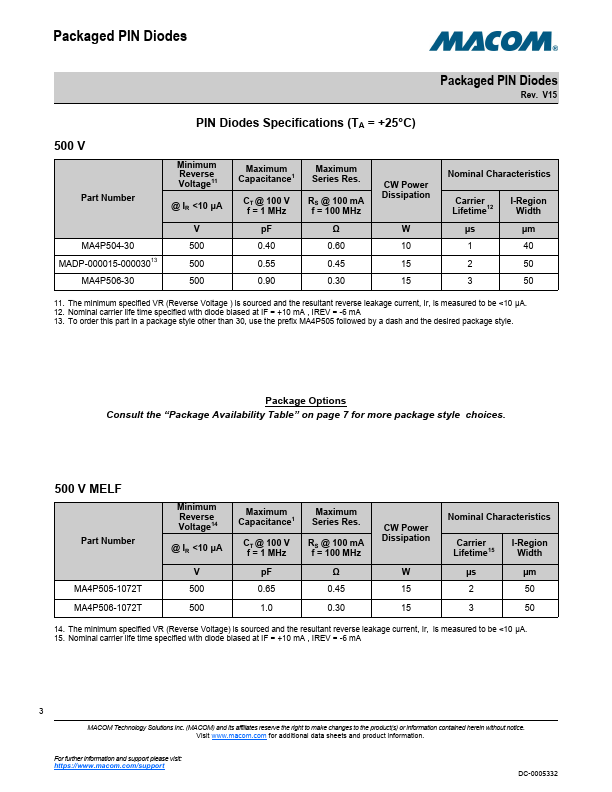

Additional preview pages of the MA4P202-120 datasheet.

📁 Similar Datasheet

  • MA4P4006-1041 - PIN Diode (MACOM)
  • MA4P7452F-1072 - Non Magnetic SMQ MELF PIN Diode (MACOM)
  • MA4P7455-1225 - Quad PIN Diode (MACOM)
  • MA4000 - Silicon planar type (Panasonic)
  • MA4000N - Silicon planar type (Panasonic Semiconductor)
  • MA40030 - Stripline Packaged Schottky Mixer Diodes (Tyco)
  • MA40032 - Stripline Packaged Schottky Mixer Diodes (Tyco)
  • MA40033 - Stripline Packaged Schottky Mixer Diodes (Tyco)
  • MA40036 - Stripline Packaged Schottky Mixer Diodes (Tyco)
  • MA40045 - Stripline Packaged Schottky Mixer Diodes (Tyco)
Other Datasheets by MA-COM

Full PDF Text Transcription

Click to expand full text
www.DataSheet.co.kr Packaged PIN Diodes RoHS Compliant Features ♦ ♦ ♦ ♦ ♦ ♦ ♦ High Power Fast Speed Voltage Ratings to 1500 Volts Wide Selection of Carrier Lifetimes Wide Selection of Capacitances Assortment of Packages Styles Available Screened for Military Applications Rev V.9 Maximum Power Dissipation Cathode Heatsink Packages 30,31,32,36,43,94,111,120, 150,255 258,296,1072,1079 Leaded Packages @+25°C 144, 186, 276,1088 Surface Mount Package +25°C 1056 Pdiss = T (max Operating)-25°C Thermal Resistance Pdiss = 250mW Description and Applications M/A-COM's broad line of packaged PIN diodes encompasses a comprehensive range of electrical characteristics and package outlines.
