RE-140RA-18100
RE-140RA-18100 is Metal-brush motors manufactured by MABUCHI MOTOR.
- Part of the RE-140RA-2270 comparator family.
- Part of the RE-140RA-2270 comparator family.

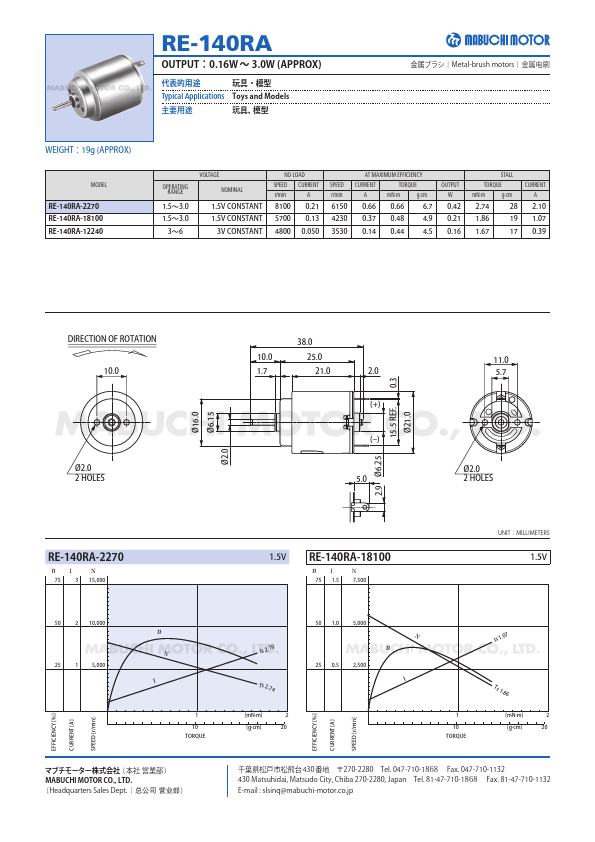

RE-140RA
OUTPUT：0.16W 〜 3.0W (APPROX)
代表的用途 Typical Applications ᇶေႨ
玩具- 模型 Toys and Models ທऎ、ଆ
金属ブラシ｜Metal-brush motors｜ࣁඋ
WEIGHT：19g (APPROX)
MODEL
RE-140RA-2270 RE-140RA-18100 RE-140RA-12240
OPERATING RANGE
1.5〜3.0 1.5〜3.0
3〜6
VOLTAGE
NOMINAL
1.5V CONSTANT 1.5V CONSTANT
3V CONSTANT
NO LOAD
SPEED CURRENT r/min
8100 0.21
5700 0.13
4800 0.050
AT MAXIMUM EFFICIENCY
SPEED CURRENT
TORQUE r/min
A m N- m g- cm
6150 0.66 0.66
4230 0.37 0.48
3530 0.14 0.44
OUTPUT W
0.42 0.21 0.16
STALL
TORQUE
CURRENT m N- m g- cm
28 2.10
19...
