RE-260RA-18130
RE-260RA-18130 is Metal-brush motors manufactured by MABUCHI MOTOR.
- Part of the RE-260RA-2670 comparator family.
- Part of the RE-260RA-2670 comparator family.

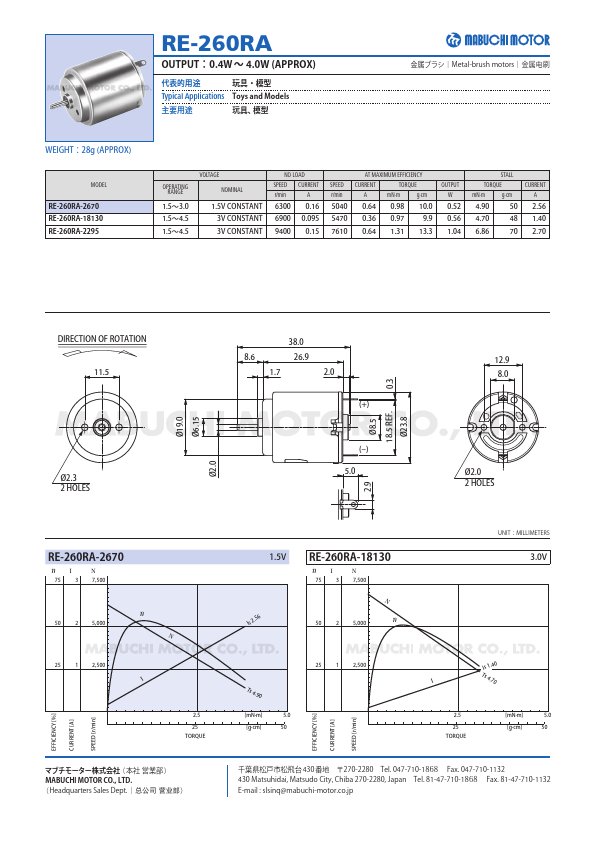

RE-260RA
OUTPUT：0.4W 〜 4.0W (APPROX)
代表的用途 Typical Applications ᇶေႨ
玩具- 模型 Toys and Models ທऎ、ଆ
金属ブラシ｜Metal-brush motors｜ࣁඋ
WEIGHT：28g (APPROX)
MODEL
RE-260RA-2670 RE-260RA-18130 RE-260RA-2295
OPERATING RANGE
1.5〜3.0 1.5〜4.5 1.5〜4.5
VOLTAGE
NOMINAL
1.5V CONSTANT 3V CONSTANT 3V CONSTANT
NO LOAD
SPEED CURRENT r/min
6300 0.16
6900 0.095
9400 0.15
AT MAXIMUM EFFICIENCY
SPEED CURRENT
TORQUE r/min
A m N- m g- cm
5040 0.64 0.98 10.0
5470 0.36 0.97
7610 0.64 1.31 13.3
OUTPUT W
0.52 0.56 1.04
STALL
TORQUE
CURRENT m N- m g- cm
50 2.56
48 1.40
70 2.70
DIRECTION OF...
