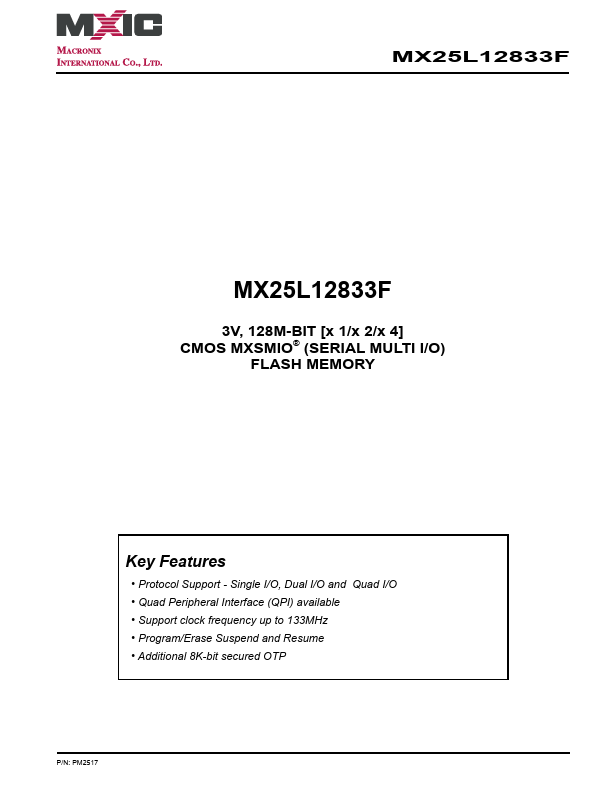

MX25L12833F - 128M-BIT FLASH MEMORY

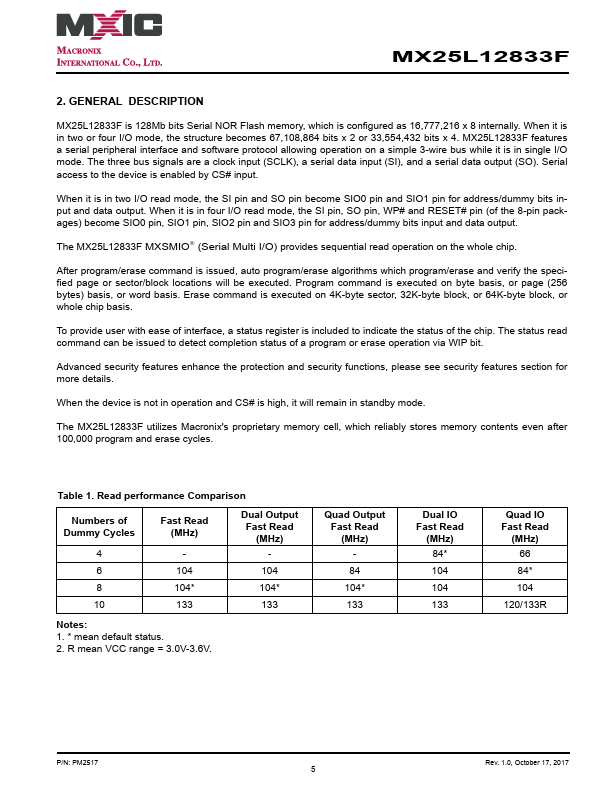

General Description

Table 1.

Read performance Comparison5 3.

4.

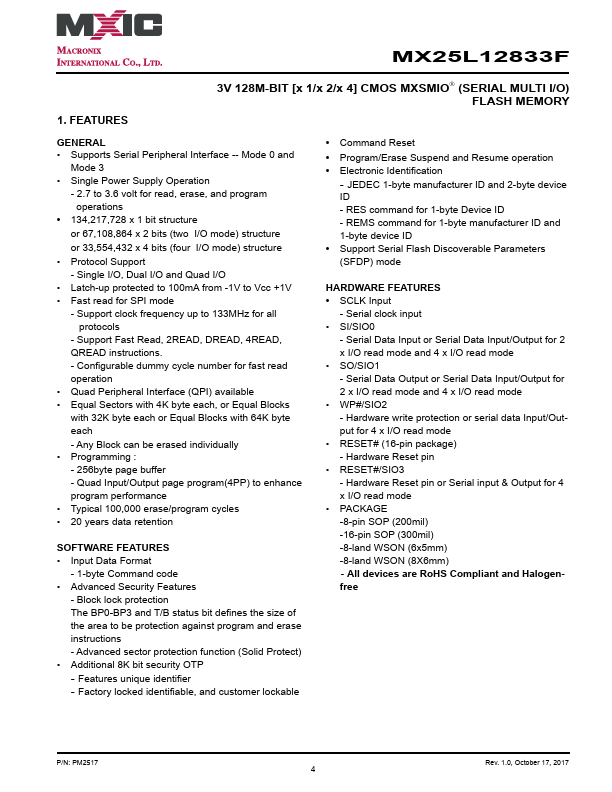

Key Features

  • Protocol Support - Single I/O, Dual I/O and Quad I/O.
  • Quad Peripheral Interface (QPI) available.
  • Support clock frequency up to 133MHz.
  • Program/Erase Suspend and Resume.
  • Additional 8K-bit secured OTP P/N: PM2517 MX25L12833F Contents 1.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MX25L12805D 128M-BIT [x 1] CMOS SERIAL FLASH Macronix International
MX25L12845E 128M-BIT [x 1/x 2/x 4] CMOS MXSMIO (SERIAL MULTI I/O) FLASH MEMORY Macronix International
MX25L12855E 128M-BIT [x 1/x 2/x 4] CMOS MXSMIOTM (SERIAL MULTI I/O) FLASH MEMORY Macronix International
MX25L1005 1M-BIT [x 1] CMOS SERIAL FLASH Macronix International
MX25L1021E 512K-BIT [x 1] CMOS SERIAL FLASH Memory Macronix International

Other Datasheets by Macronix

Part Number Description
MX25L12835E 128M-BIT [x 1/x 2/x 4] CMOS MXSMIO
MX25L12835F 3V 128M-BIT [x 1/x 2/x 4] CMOS MXSMIO
MX25L12836E FLASH MEMORY
MX25L12850F CMOS MXSMIO RPMC FLASH MEMORY
MX25L12855E FLASH MEMORY

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
MX25L12833F MX25L12833F 3V, 128M-BIT [x 1/x 2/x 4] CMOS MXSMIO® (SERIAL MULTI I/O) FLASH MEMORY Key Features • Protocol Support - Single I/O, Dual I/O and Quad I/O • Quad Peripheral Interface (QPI) available • Support clock frequency up to 133MHz • Program/Erase Suspend and Resume • Additional 8K-bit secured OTP P/N: PM2517 MX25L12833F Contents 1. FEATURES............................................................................................................................................................... 4 2. GENERAL DESCRIPTION...................................................................................................................................... 5 Table 1. Read performance Comparison...................................................................................
