MX25L12835F-J Overview
MX25L12835F is 128Mb bits serial Flash memory, which is configured as 16,777,216 x 8 internally. When it is in two or four I/O mode, the structure bees 67,108,864 bits x 2 or 33,554,432 bits x.

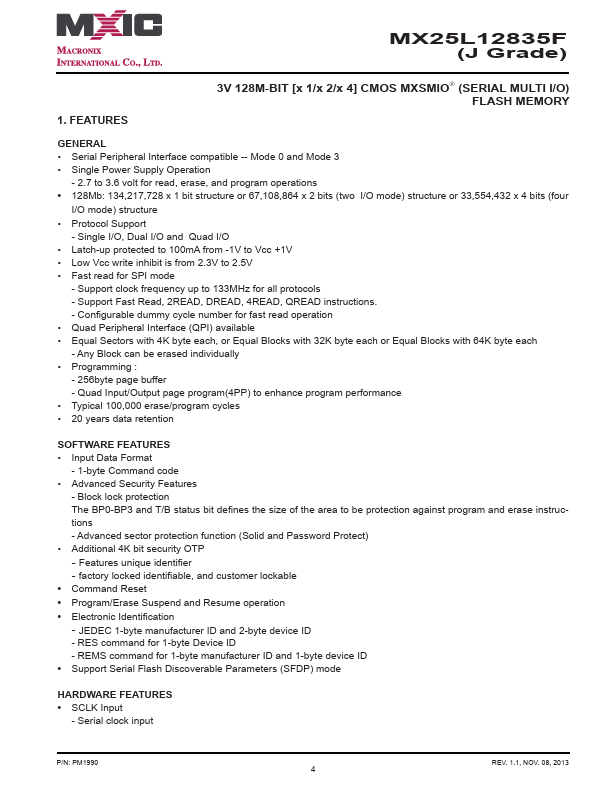

MX25L12835F-J Key Features
- Serial Peripheral Interface patible -- Mode 0 and Mode 3
- Single Power Supply Operation
- 2.7 to 3.6 volt for read, erase, and program operations
- Protocol Support
- Single I/O, Dual I/O and Quad I/O
- Latch-up protected to 100mA from -1V to Vcc +1V
- Low Vcc write inhibit is from 2.3V to 2.5V
- Fast read for SPI mode
- Support clock frequency up to 133MHz for all protocols
- Support Fast Read, 2READ, DREAD, 4READ, QREAD instructions
