MX25L1636E

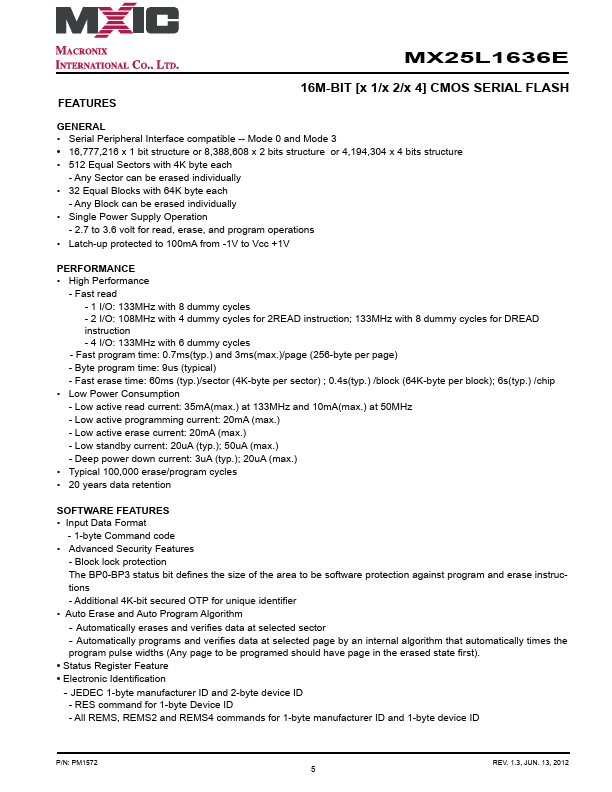

FEATURES
16M-BIT [x 1/x 2/x 4] CMOS SERIAL FLASH
GENERAL
- Serial Peripheral Interface patible -- Mode 0 and Mode 3
- 16,777,216 x 1 bit structure or 8,388,608 x 2 bits structure or 4,194,304 x 4 bits structure
- 512 Equal Sectors with 4K byte each
- Any Sector can be erased individually
- 32 Equal Blocks with 64K byte each
- Any Block can be erased individually
- Single Power Supply Operation
- 2.7 to 3.6 volt for read, erase, and program operations
- Latch-up protected to 100m A from -1V to Vcc +1V
PERFORMANCE
- High Performance
- Fast read
- 1 I/O: 133MHz with 8 dummy cycles
- 2 I/O: 108MHz with 4 dummy cycles for 2READ instruction; 133MHz with 8 dummy cycles for DREAD instruction
- 4 I/O: 133MHz with 6 dummy cycles
- Fast program time: 0.7ms(typ.) and 3ms(max.)/page (256-byte per page)
- Byte program time: 9us (typical)
- Fast erase time: 60ms (typ.)/sector (4K-byte per sector) ; 0.4s(typ.) /block (64K-byte per block); 6s(typ.) /chip
- Low Power Consumption
-...
