MX25L1633E

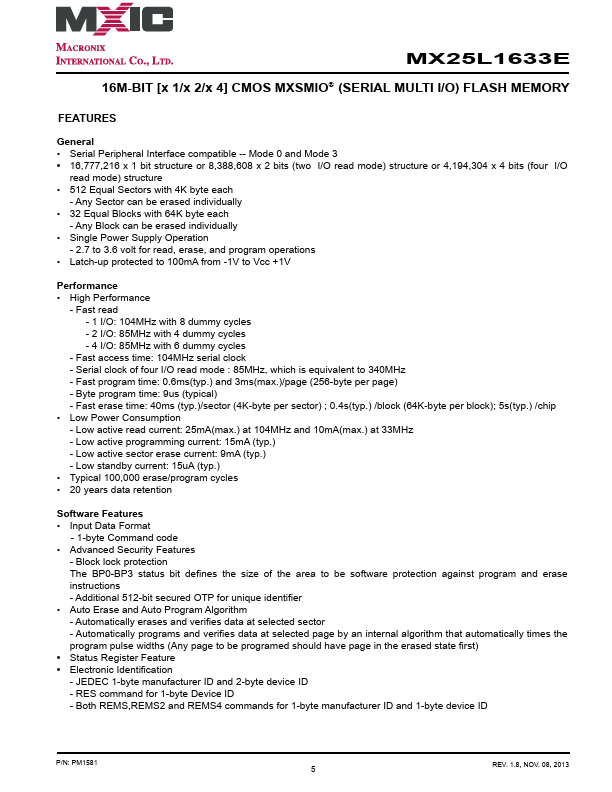

Overview
- Serial Peripheral Interface compatible -- Mode 0 and Mode 3
- 16,777,216 x 1 bit structure or 8,388,608 x 2 bits (two I/O read mode) structure or 4,194,304 x 4 bits (four I/O read mode) structure
- 512 Equal Sectors with 4K byte each - Any Sector can be erased individually
- 32 Equal Blocks with 64K byte each - Any Block can be erased individually
- Single Power Supply Operation - 2.7 to 3.6 volt for read, erase, and program operations
- Latch-up protected to 100mA from -1V to Vcc +1V Performance
- High Performance - Fast read - 1 I/O: 104MHz with 8 dummy cycles - 2 I/O: 85MHz with 4 dummy cycles - 4 I/O: 85MHz with 6 dummy cycles - Fast access time: 104MHz serial clock - Serial clock of four I/O read mode : 85MHz, which is equivalent to 340MHz - Fast program time: 0.6ms(typ.) and 3ms(max.)/page (256-byte per page) - Byte program time: 9us (typical) - Fast erase time: 40ms (typ.)/sector (4K-byte per sector) ; 0.4s(typ.) /block (64K-byte per block); 5s(typ.) /chip
- Low Power Consumption - Low active read current: 25mA(max.) at 104MHz and 10mA(max.) at 33MHz - Low active programming current: 15mA (typ.) - Low active sector erase current: 9mA (typ.) - Low standby current: 15uA (typ.)
- Typical 100,000 erase/program cycles
- 20 years data retention Software Features
