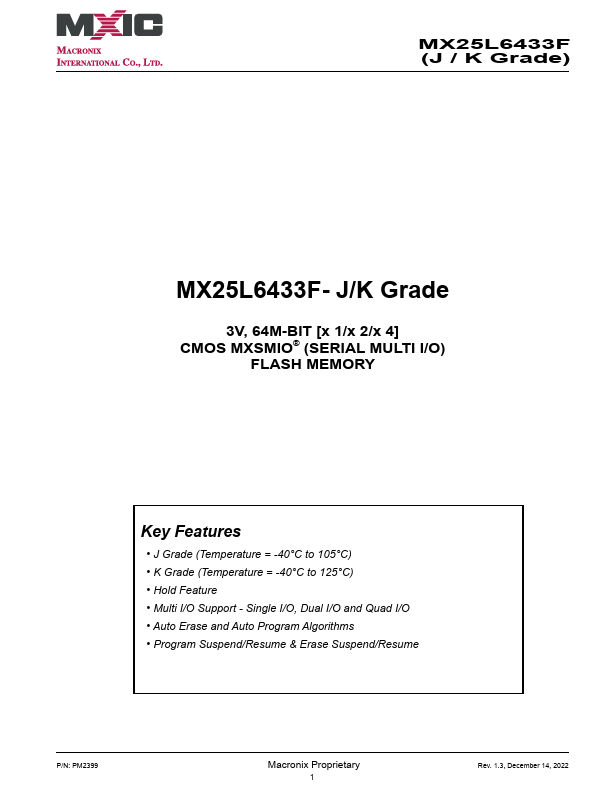

MX25L6433F-K
Features
- J Grade (Temperature = -40°C to 105°C)
- K Grade (Temperature = -40°C to 125°C)
- Hold Feature
- Multi I/O Support
- Single I/O, Dual I/O and Quad I/O
- Auto Erase and Auto Program Algorithms
- Program Suspend/Resume & Erase Suspend/Resume
P/N: PM2399
Macronix Proprietary
Rev. 1.3, December 14, 2022
MX25L6433F (J / K Grade)
64M-BIT [x 1 / x 2 / x 4] CMOS MXSMIO® (SERIAL MULTI I/O) FLASH MEMORY

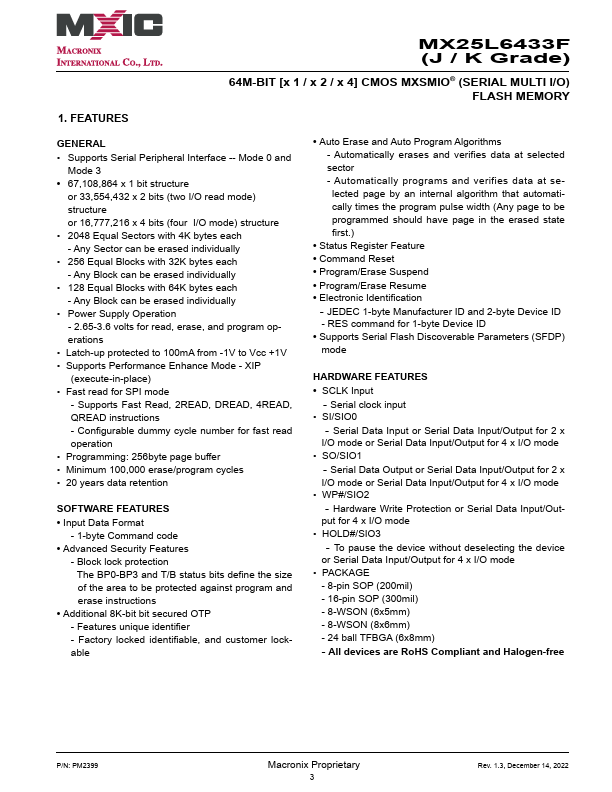

1. FEATURES
GENERAL
- Supports Serial Peripheral Interface -- Mode 0 and
Mode 3
- 67,108,864 x 1 bit structure or 33,554,432 x 2 bits (two I/O read mode) structure or 16,777,216 x 4 bits (four I/O mode) structure
- 2048 Equal Sectors with 4K bytes each
- Any Sector can be erased individually
- 256 Equal Blocks with 32K bytes each
- Any Block can be erased individually
- 128 Equal Blocks with 64K bytes each
- Any Block can be erased individually
- Power Supply Operation
- 2.65-3.6 volts for read, erase, and program operations
- Latch-up protected to 100m A from -1V to Vcc +1V
-...
