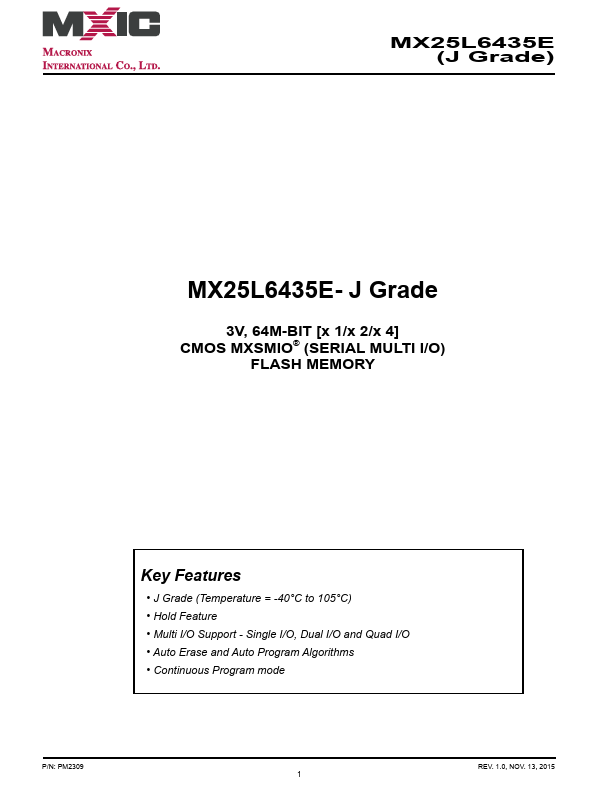

MX25L6435E-J
Features
- J Grade (Temperature = -40°C to 105°C)
- Hold Feature
- Multi I/O Support
- Single I/O, Dual I/O and Quad I/O
- Auto Erase and Auto Program Algorithms
- Continuous Program mode
P/N: PM2309
REV. 1.0, NOV. 13, 2015 1
MX25L6435E (J Grade)
64M-BIT [x 1/x 2/x 4] CMOS MXSMIO® (SERIAL MULTI I/O) FLASH MEMORY

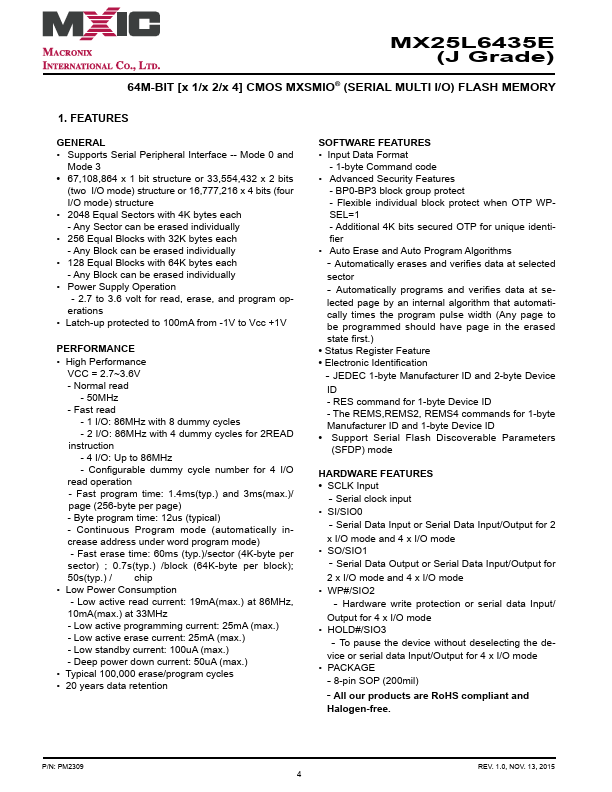

1. FEATURES
GENERAL
- Supports Serial Peripheral Interface -- Mode 0 and
Mode 3
- 67,108,864 x 1 bit structure or 33,554,432 x 2 bits
(two I/O mode) structure or 16,777,216 x 4 bits (four I/O mode) structure
- 2048 Equal Sectors with 4K bytes each
- Any Sector can be erased individually
- 256 Equal Blocks with 32K bytes each
- Any Block can be erased individually
- 128 Equal Blocks with 64K bytes each
- Any Block can be erased individually
- Power Supply Operation
- 2.7 to 3.6 volt for read, erase, and program operations
- Latch-up protected to 100m A from -1V to Vcc +1V
PERFORMANCE
- High Performance
VCC = 2.7~3.6V
- Normal read
- 50MHz
- Fast read
- 1 I/O: 86MHz...
