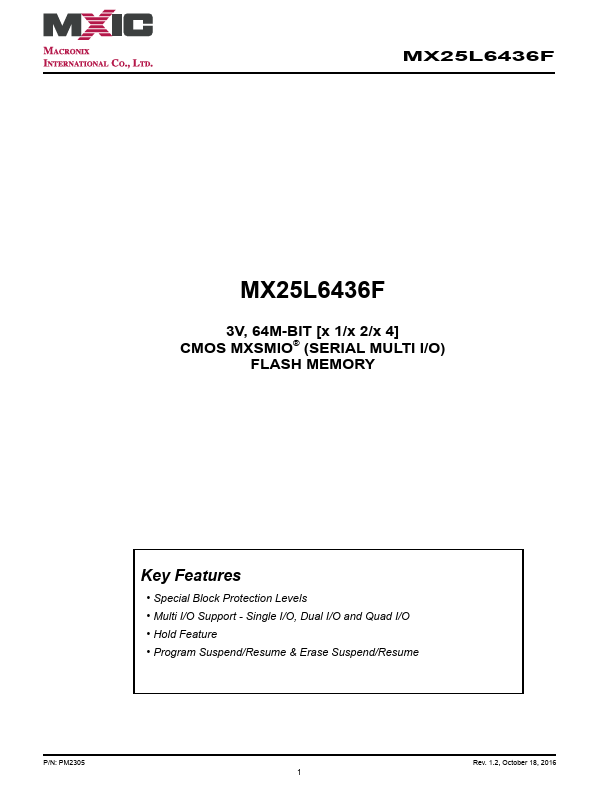

MX25L6436F
Features
- Special Block Protection Levels
- Multi I/O Support
- Single I/O, Dual I/O and Quad I/O
- Hold Feature
- Program Suspend/Resume & Erase Suspend/Resume
P/N: PM2305
Rev. 1.2, October 18, 2016 1

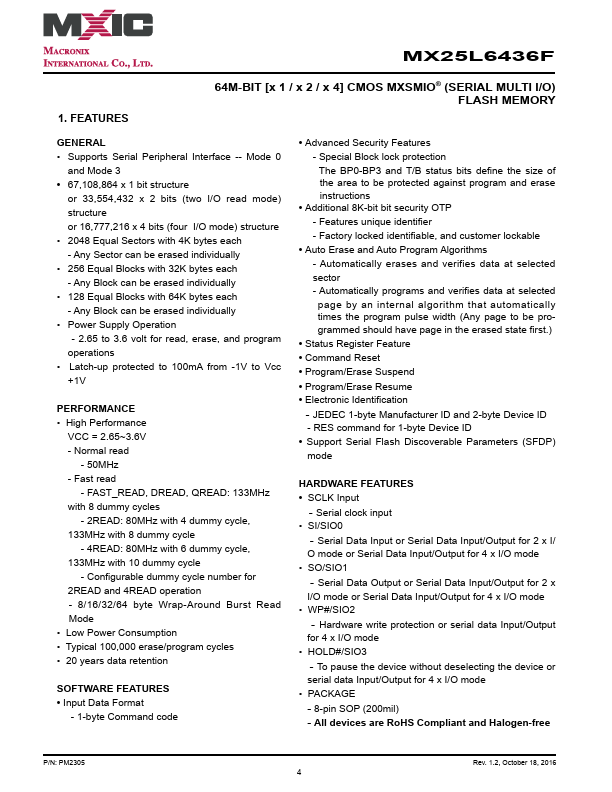

1. FEATURES
64M-BIT [x 1 / x 2 / x 4] CMOS MXSMIO® (SERIAL MULTI I/O) FLASH MEMORY
GENERAL
- Supports Serial Peripheral Interface -- Mode 0 and Mode 3
- 67,108,864 x 1 bit structure or 33,554,432 x 2 bits (two I/O read mode) structure or 16,777,216 x 4 bits (four I/O mode) structure
- 2048 Equal Sectors with 4K bytes each
- Any Sector can be erased individually
- 256 Equal Blocks with 32K bytes each
- Any Block can be erased individually
- 128 Equal Blocks with 64K bytes each
- Any Block can be erased individually
- Power Supply Operation
- 2.65 to 3.6 volt for read, erase, and program operations
- Latch-up protected to 100m A from -1V to Vcc +1V
PERFORMANCE
- High Performance
VCC = 2.65~3.6V
- Normal read
- 50MHz
- Fast read
- FAST_READ, DREAD, QREAD: 133MHz with...
