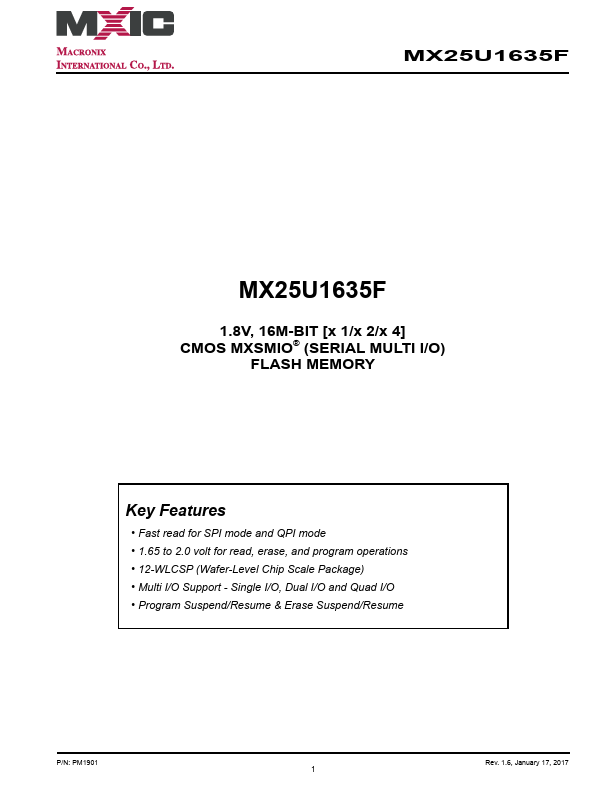

MX25U1635F
Features
- Fast read for SPI mode and QPI mode
- 1.65 to 2.0 volt for read, erase, and program operations
- 12-WLCSP (Wafer-Level Chip Scale Package)
- Multi I/O Support
- Single I/O, Dual I/O and Quad I/O
- Program Suspend/Resume & Erase Suspend/Resume
P/N: PM1901
Rev. 1.6, January 17, 2017 1

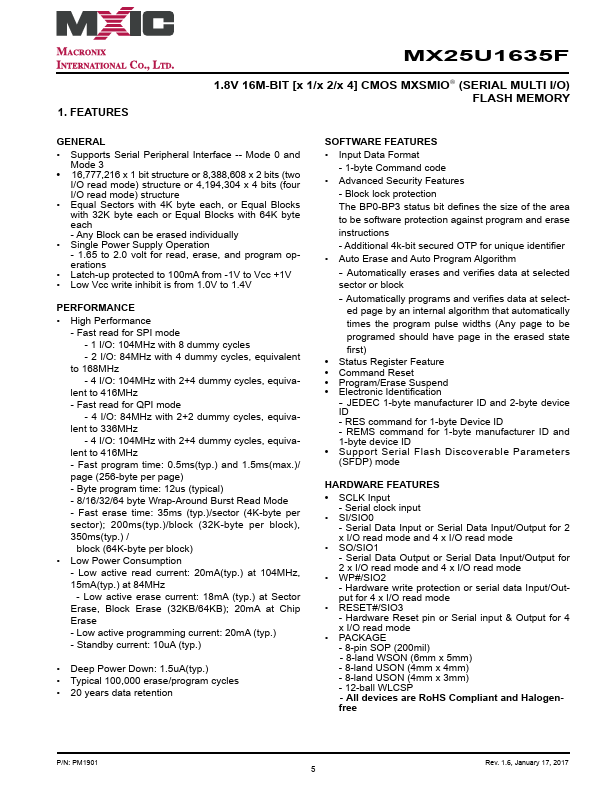

1. FEATURES
1.8V 16M-BIT [x 1/x 2/x 4] CMOS MXSMIO (SERIAL MULTI I/O) FLASH MEMORY
GENERAL
- Supports Serial Peripheral Interface -- Mode 0 and
Mode 3
- 16,777,216 x 1 bit structure or 8,388,608 x 2 bits (two
I/O read mode) structure or 4,194,304 x 4 bits (four I/O read mode) structure
- Equal Sectors with 4K byte each, or Equal Blocks with 32K byte each or Equal Blocks with 64K byte each
- Any Block can be erased individually
- Single Power Supply Operation
- 1.65 to 2.0 volt for read, erase, and program operations
- Latch-up protected to 100m A from -1V to Vcc +1V
- Low Vcc write inhibit is from 1.0V to 1.4V
PERFORMANCE
- High Performance
- Fast read for SPI mode
- 1 I/O:...
