Datasheet Summary
1.8V, 16M-BIT [x 1/x 2/x 4] CMOS MXSMIO® (SERIAL MULTI I/O)
FLASH MEMORY
Key Features
- 1.65 to 2.0 volt for read, erase, and program operations
- Multi I/O Support
- Single I/O, Dual I/O and Quad I/O
- Fast read for SPI mode and QPI mode
- Additional 4k-bit secured OTP for unique identifier
- Auto Erase and Auto Program Algorithm
P/N: PM1472
Rev. 2.1, September 29, 2016 1
16M-BIT [x 1/x 2/x 4] 1.8V CMOS MXSMIO® (SERIAL MULTI I/O) FLASH MEMORY

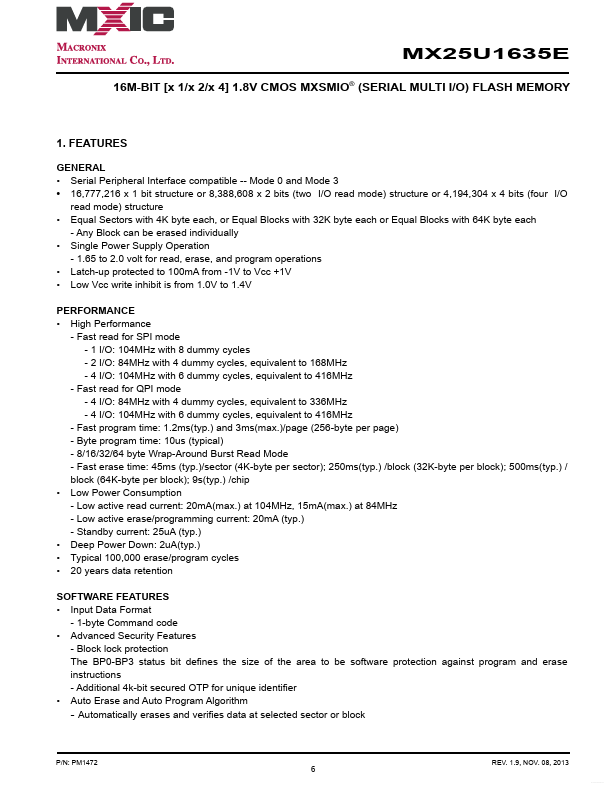

1. Features
GENERAL
- Supports Serial Peripheral Interface -- Mode 0 and
Mode 3
- 16,777,216 x 1 bit structure or 8,388,608 x 2 bits (two
I/O read mode) structure or 4,194,304 x 4 bits (four I/O read mode)...
