MX25U5121E MX25U1001E

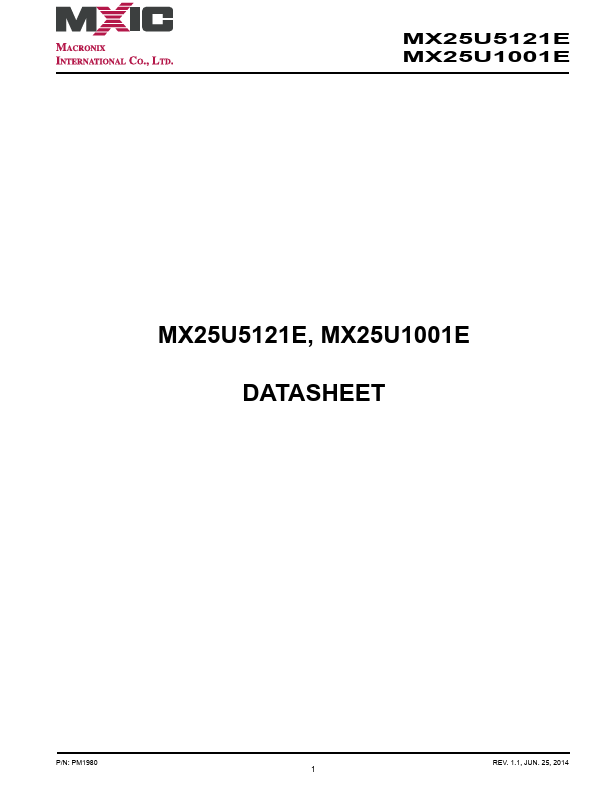

MX25U5121E, MX25U1001E DATASHEET
P/N: PM1980
REV. 1.1, JUN. 25, 2014 1
MX25U5121E MX25U1001E

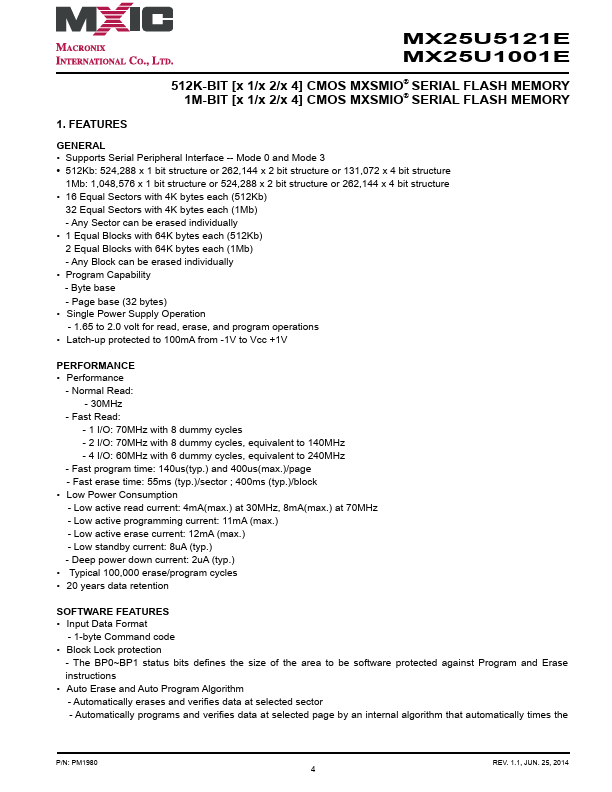

512K-BIT [x 1/x 2/x 4] CMOS MXSMIO SERIAL FLASH MEMORY 1M-BIT [x 1/x 2/x 4] CMOS MXSMIO SERIAL FLASH MEMORY
1. Features
GENERAL
- Supports Serial Peripheral Interface -- Mode 0 and Mode 3
- 512Kb: 524,288 x 1 bit structure or 262,144 x 2 bit structure or 131,072 x 4 bit structure
1Mb: 1,048,576 x 1 bit structure or 524,288 x 2 bit structure or 262,144 x 4 bit structure
- 16 Equal Sectors with 4K bytes each (512Kb)
32 Equal Sectors with 4K bytes each (1Mb)
- Any Sector can be erased individually
- 1 Equal Blocks with 64K bytes each (512Kb) 2 Equal Blocks with 64K bytes...
