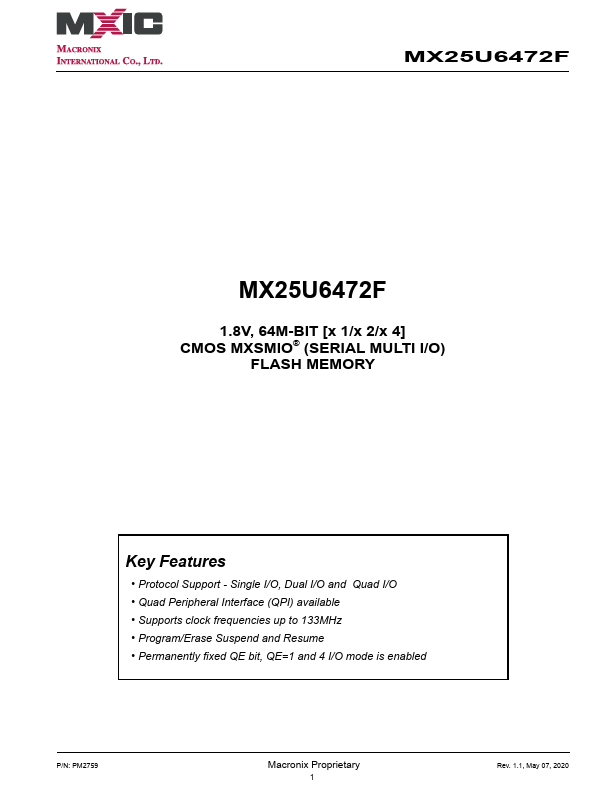

MX25U6472F
Features
- Protocol Support
- Single I/O, Dual I/O and Quad I/O
- Quad Peripheral Interface (QPI) available
- Supports clock frequencies up to 133MHz
- Program/Erase Suspend and Resume
- Permanently fixed QE bit, QE=1 and 4 I/O mode is enabled
P/N: PM2759
Macronix Proprietary
Rev. 1.1, May 07, 2020
1.8V 64M-BIT [x 1/x 2/x 4] CMOS MXSMIO® (SERIAL MULTI I/O) FLASH MEMORY

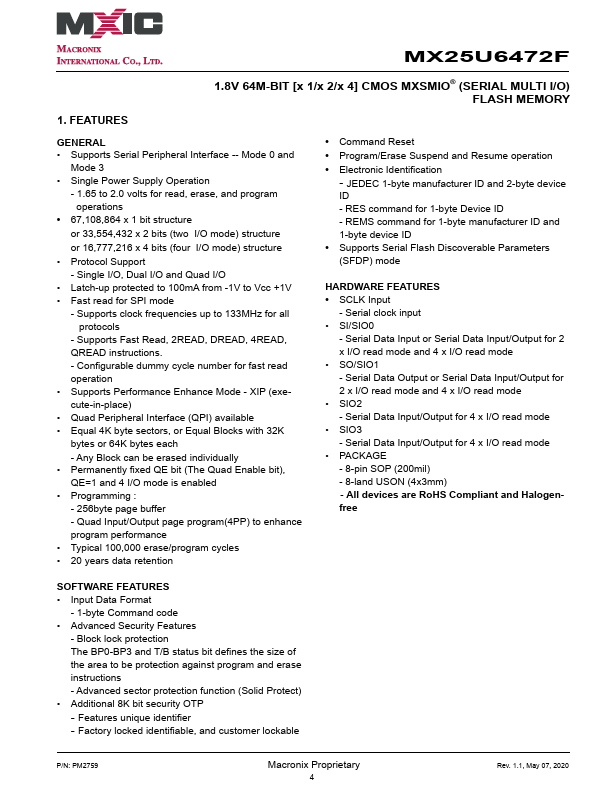

1. FEATURES
GENERAL
- Supports Serial Peripheral Interface -- Mode 0 and
Mode 3
- Single Power Supply Operation
- 1.65 to 2.0 volts for read, erase, and program operations
- 67,108,864 x 1 bit structure or 33,554,432 x 2 bits (two I/O mode) structure or 16,777,216 x 4 bits (four I/O mode) structure
- Protocol Support
- Single I/O, Dual I/O and Quad I/O
- Latch-up protected to 100m A from -1V to Vcc +1V
- Fast read for SPI mode
- Supports clock frequencies up to 133MHz for all protocols
- Supports Fast Read, 2READ, DREAD, 4READ, QREAD instructions.
- Configurable dummy cycle number for fast read...
