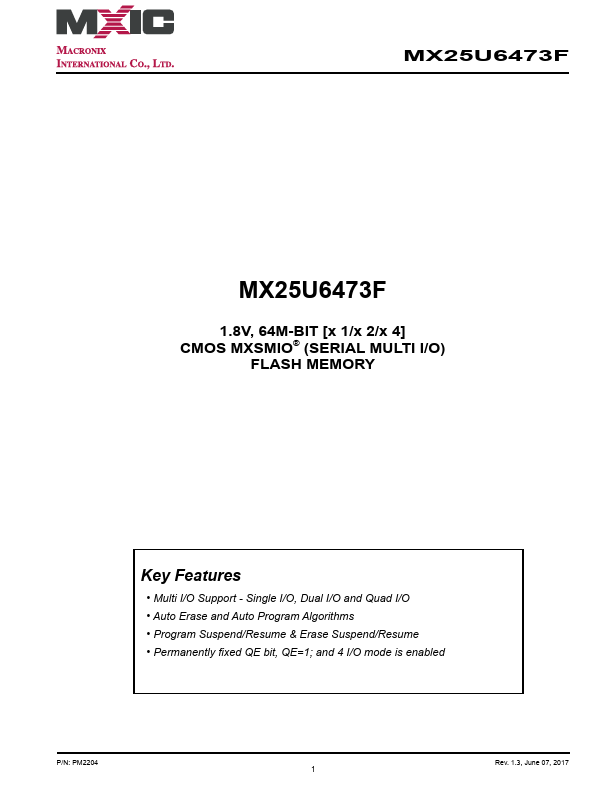

MX25U6473F
MX25U6473F is FLASH MEMORY manufactured by Macronix.
1.8V, 64M-BIT [x 1/x 2/x 4] CMOS MXSMIO® (SERIAL MULTI I/O)
FLASH MEMORY
Key Features
- Multi I/O Support
- Single I/O, Dual I/O and Quad I/O
- Auto Erase and Auto Program Algorithms
- Program Suspend/Resume & Erase Suspend/Resume
- Permanently fixed QE bit, QE=1; and 4 I/O mode is enabled
P/N: PM2204
Rev. 1.3, June 07, 2017 1

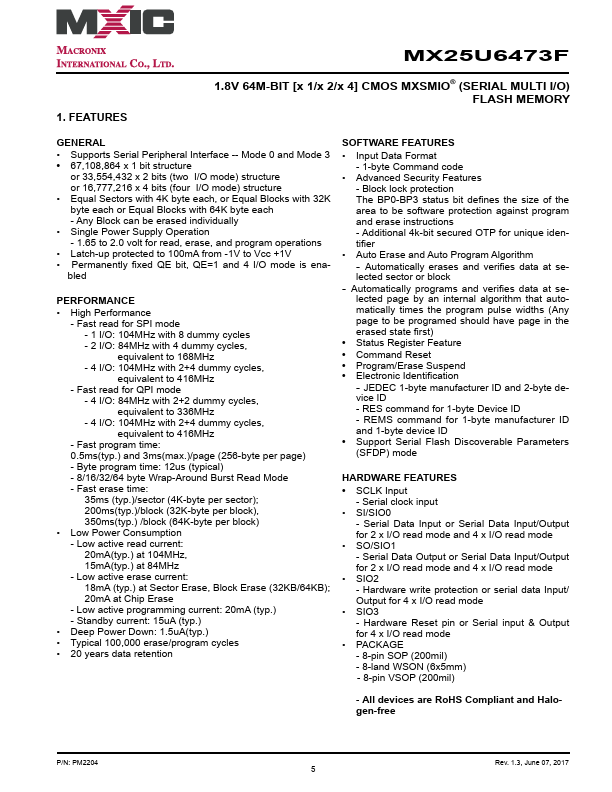

1. Features
1.8V 64M-BIT [x 1/x 2/x 4] CMOS MXSMIO® (SERIAL MULTI I/O) FLASH MEMORY
GENERAL
- Supports Serial Peripheral Interface -- Mode 0 and Mode 3
- 67,108,864 x 1 bit structure or 33,554,432 x 2 bits (two I/O mode) structure or 16,777,216 x 4 bits (four I/O mode) structure
- Equal Sectors with 4K byte each, or Equal...
