MX25V4005 Overview

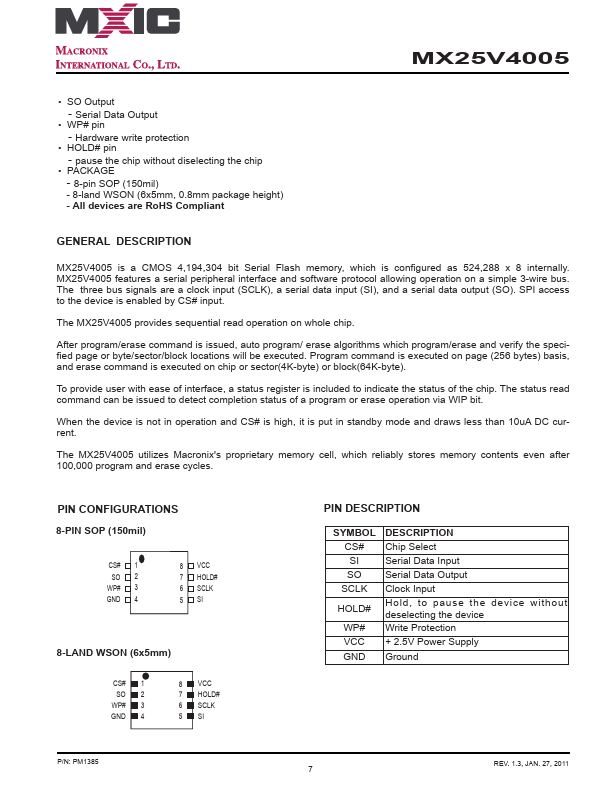

MX25V4005 is a CMOS 4,194,304 bit Serial Flash memory, which is configured as 524,288 x 8 internally.

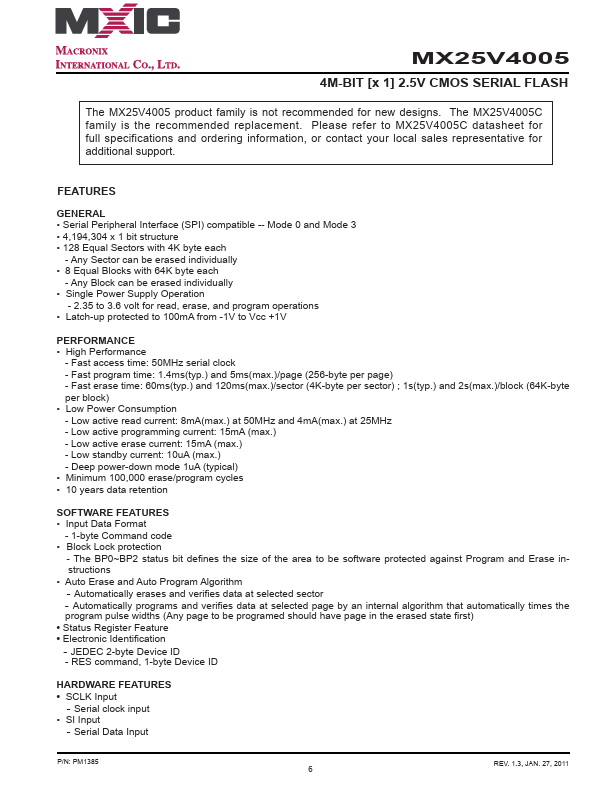

MX25V4005 Key Features
- Serial Peripheral Interface (SPI) patible -- Mode 0 and Mode 3
- 4,194,304 x 1 bit structure
- 128 Equal Sectors with 4K byte each
- Any Sector can be erased individually
- 8 Equal Blocks with 64K byte each
- Any Block can be erased individually
- Single Power Supply Operation
- 2.35 to 3.6 volt for read, erase, and program operations
- Latch-up protected to 100mA from -1V to Vcc +1V
- High Performance
