MX25V4005C - FLASH MEMORY

Datasheet Summary

Description

The MX25V4005C is a CMOS 4,194,304 bit serial Flash memory, which is configured as 524,288 x 8 internally.

The MX25V4005C feature a serial peripheral interface and software protocol allowing operation on a simple 3-wire bus.

📥 Download Datasheet

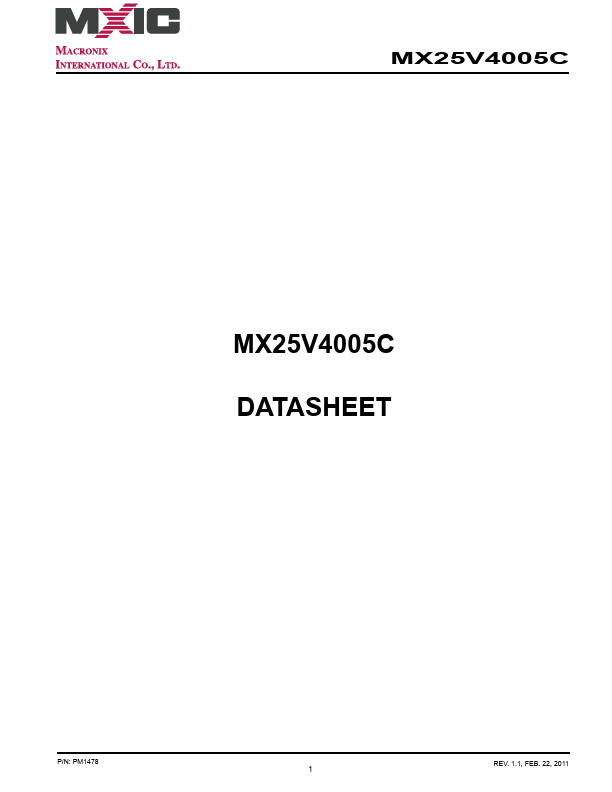

Datasheet preview – MX25V4005C

Datasheet Details

Part number MX25V4005C
Manufacturer MACRONIX
File Size 1.17 MB
Description FLASH MEMORY
Datasheet download datasheet MX25V4005C Datasheet

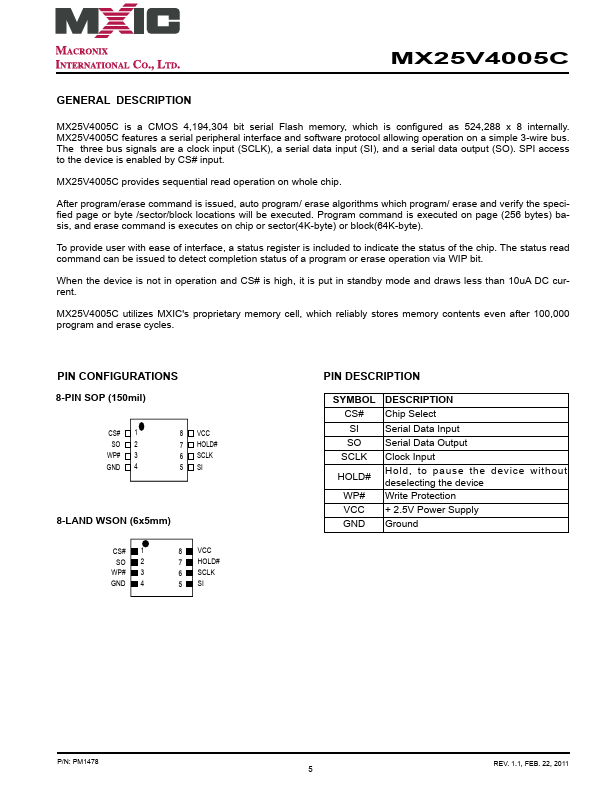

Additional preview pages of the MX25V4005C datasheet.

📁 Similar Datasheet

  • MX25V4035 - FLASH MEMORY (Macronix International)
  • MX25V8005 - FLASH MEMORY (Macronix International)
  • MX25V8035 - FLASH MEMORY (Macronix International)
  • MX25924 - 12V electronic fuse (MAXINMICRO)
  • MX25947 - 24V electronic fuse (MAXINMICRO)
  • MX25L1005 - 1M-BIT [x 1] CMOS SERIAL FLASH (Macronix International)
  • MX25L1021E - 512K-BIT [x 1] CMOS SERIAL FLASH Memory (Macronix International)
  • MX25L1025C - 1M-BIT [x 1] CMOS SERIAL FLASH (Macronix International)
  • MX25L12805D - 128M-BIT [x 1] CMOS SERIAL FLASH (Macronix International)
  • MX25L12845E - 128M-BIT [x 1/x 2/x 4] CMOS MXSMIO (SERIAL MULTI I/O) FLASH MEMORY (Macronix International)
Other Datasheets by MACRONIX

Full PDF Text Transcription

Click to expand full text

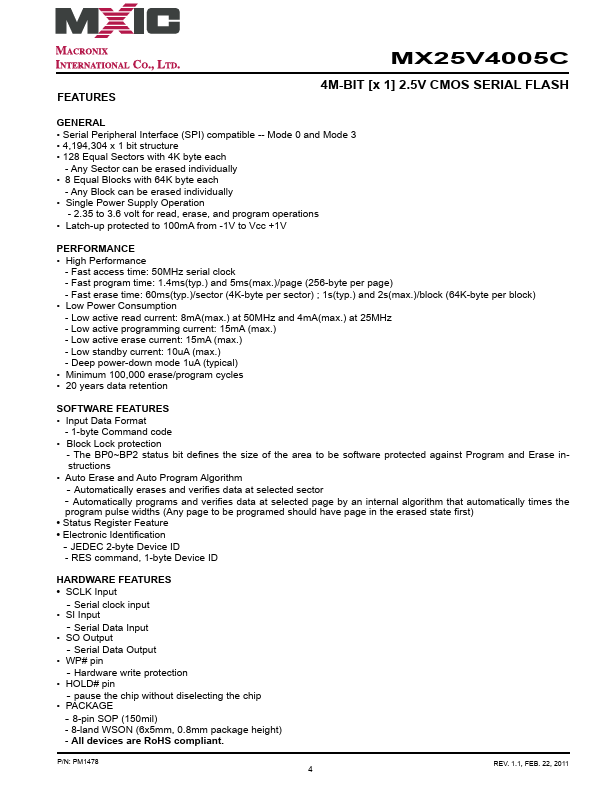

MX25V4005C 4M-BIT [x 1] 2.5V CMOS SERIAL FLASH FEATURES GENERAL • Serial Peripheral Interface (SPI) compatible -- Mode 0 and Mode 3 • 4,194,304 x 1 bit structure • 128 Equal Sectors with 4K byte each - Any Sector can be erased individually • 8 Equal Blocks with 64K byte each - Any Block can be erased individually • Single Power Supply Operation - 2.35 to 3.6 volt for read, erase, and program operations • Latch-up protected to 100mA from -1V to Vcc +1V PERFORMANCE • High Performance - Fast access time: 50MHz serial clock - Fast program time: 1.4ms(typ.) and 5ms(max.)/page (256-byte per page) - Fast erase time: 60ms(typ.)/sector (4K-byte per sector) ; 1s(typ.) and 2s(max.)/block (64K-byte per block) • Low Power Consumption - Low active read current: 8mA(max.) at 50MHz and 4mA(max.
