MX25V5126F
Features
- Voltlage Range VCC: 2.3V
- 3.6V
- Dual I/O Supported
- Unique ID
- Supports conditional accelerated t BE and t CE
- Enhanced Program and Erase performance (for increased factory production throughput)
P/N: PM2605
Macronix Proprietary
Rev. 1.1, September 03, 2020

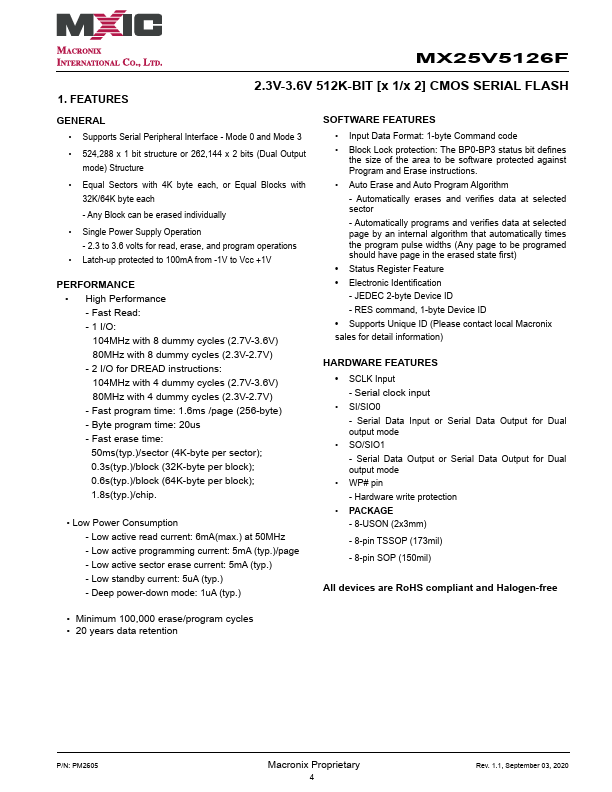

1. FEATURES
2.3V-3.6V 512K-BIT [x 1/x 2] CMOS SERIAL FLASH
GENERAL
- Supports Serial Peripheral Interface
- Mode 0 and Mode 3
- 524,288 x 1 bit structure or 262,144 x 2 bits (Dual Output mode) Structure
- Equal Sectors with 4K byte each, or Equal Blocks with 32K/64K byte each
- Any Block can be erased individually
- Single Power Supply Operation
- 2.3 to 3.6 volts for read, erase, and program operations
- Latch-up protected to 100m A from -1V to Vcc +1V
PERFORMANCE
- High Performance
- Fast Read:
- 1 I/O: 104MHz with 8 dummy cycles (2.7V-3.6V) 80MHz with 8 dummy cycles (2.3V-2.7V)
- 2 I/O for DREAD instructions: 104MHz with 4 dummy cycles (2.7V-3.6V)...
