MX66U2G45G - 2G-BIT [x 1/x 2/x 4] FLASH MEMORY

Datasheet Summary

Description

Table 1.

Read performance Comparison7 3.

Table 2.

Features

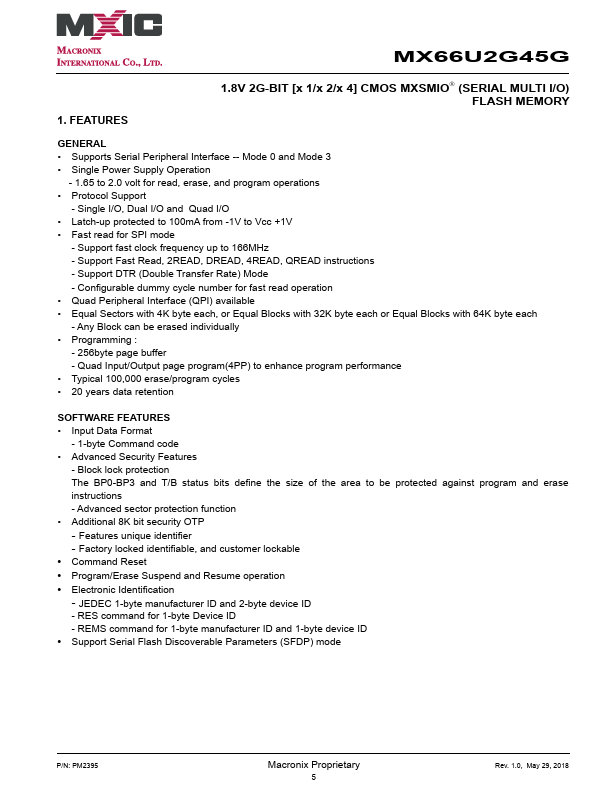

  • Multi I/O Support - Single I/O, Dual I/O and Quad I/O.
  • Support DTR (Double Transfer Rate) Mode.
  • 8/16/32/64 byte Wrap-Around Read Mode Macronix Proprietary MX66U2G45G Contents 1.

📥 Download Datasheet

Datasheet preview – MX66U2G45G

Datasheet Details

Part number MX66U2G45G
Manufacturer MACRONIX
File Size 1.06 MB
Description 2G-BIT [x 1/x 2/x 4] FLASH MEMORY
Datasheet download datasheet MX66U2G45G Datasheet

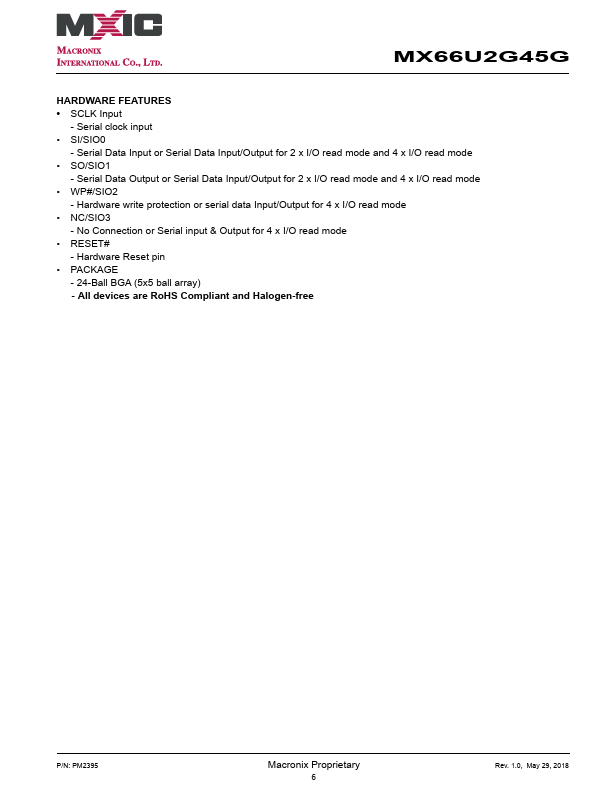

Additional preview pages of the MX66U2G45G datasheet.

📁 Similar Datasheet

  • MX66U51235F - FLASH MEMORY (MCNIX)
  • MX66C1024 - 5V Low Power CMOS SRAM (Macronix International)
  • MX66C256 - Very Low Power 32k x 8 CMOS SRAM (Macronix International)
  • MX66L51235F - FLASH MEMORY (MCNIX)
  • MX6018 - N-Channel Power MOSFET (ChipSourceTek)
  • MX6058 - N-Channel Enhancement Mode Power MOSFET (ChipSourceTek)
  • MX6060 - -Band Outdoor WiFi6 High Performance Wireless Access Point (MAXON)
  • MX610 - Operator and Installation Manual (SIMRAD)
  • MX611 - SPM Detector (CML)
  • MX612 - Operator and Installation Manual (SIMRAD)
Other Datasheets by MACRONIX

Full PDF Text Transcription

Click to expand full text

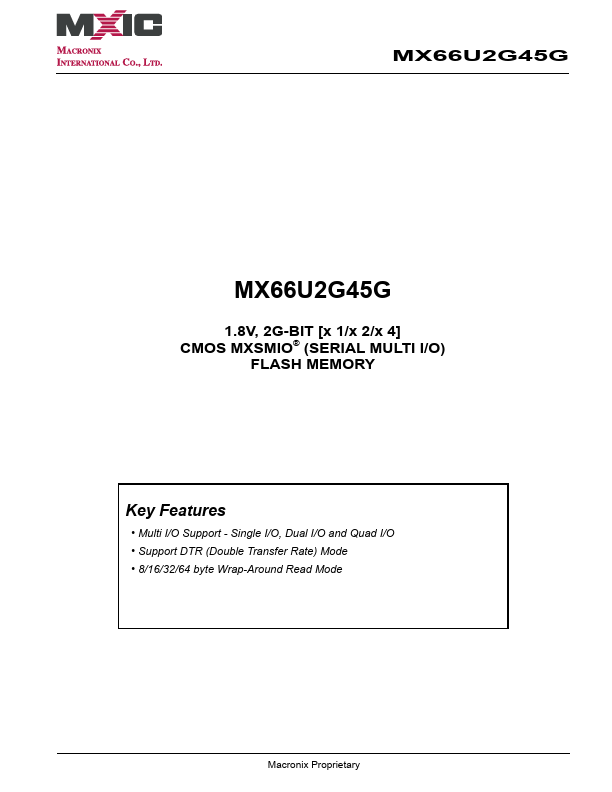

MX66U2G45G MX66U2G45G 1.8V, 2G-BIT [x 1/x 2/x 4] CMOS MXSMIO® (SERIAL MULTI I/O) FLASH MEMORY Key Features • Multi I/O Support - Single I/O, Dual I/O and Quad I/O • Support DTR (Double Transfer Rate) Mode • 8/16/32/64 byte Wrap-Around Read Mode Macronix Proprietary MX66U2G45G Contents 1. FEATURES............................................................................................................................................................... 5 2. GENERAL DESCRIPTION...................................................................................................................................... 7 Table 1. Read performance Comparison.....................................................................................................7 3. PIN CONFIGURATIONS ...................
