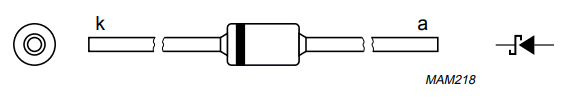

Micro Commercial Components 1N5818
Schottky Barrier Rectifier
| Part No. | 1N5818 |
|---|---|
| Datasheet | 1N5818 Download |
| Manufacturer |  Micro Commercial Components |
| Description | Schottky Barrier Rectifier |
| Buy | Stock & Price |
FEATURES
● Halogen free available upon request by adding suffix "-HF"● Guard Ring Protection
● Low Forward Voltage
● Low Power Loss For High Efficiency
● Epoxy meets UL 94 V-0 flammability rating
● Moisture Sensitivity Level 1
● Lead Free Finish/RoHS Compliant (Note1) ("P"Suffix designates Compliant. See ordering information)
MAXIMUM RATINGS
● Operating Temperature: -55°C to +125°C● Storage Temperature: -55°C to +125°C
● Maximum Thermal Resistance; 80°C/W Junction To Ambient Maximum Maximum DC MCC Recurrent Maximum Blocking Part Number Peak Reverse RMS Voltage Voltage Voltage 1N5817 20V 14V 20V 1N5818 30V 21V 30V 1N5819 40V 28V 40V
ELECTRICAL CHARACTERISTICS
@ 25°C Unless Otherwise Specified Average Forward Current IF(AV) 1.0A TA = 90°C Peak Forward Surge IFSM Current 25A 8.3ms, half sine Maximum Instantaneous Forward Voltage 1N5817 1N5818 1N5819 VF .45V IFM = 1.0A; .55V TJ = 25°C* .60V Maximum DC Reverse Current At Rated DC Blocking Voltage IR 1.0mA TJ = 25°C 10mA TJ = 100°C Typical...
