1SS187 Datasheet

Manufacturer: Micro Commercial Components

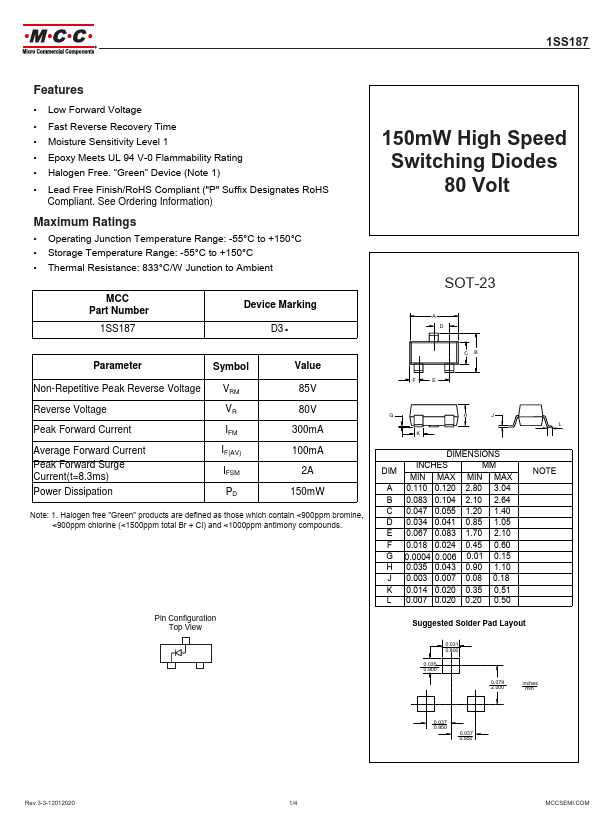

1SS187 datasheet preview

Datasheet Details

Part number	1SS187
Datasheet	1SS187-MCC.pdf
File Size	913.96 KB
Manufacturer	Micro Commercial Components
Description	150mW 80V High Speed Switching Diodes

1SS187 Overview

1SS187.

1SS187 Key Features

Low Forward Voltage
Fast Reverse Recovery Time
Moisture Sensitivity Level 1
Epoxy Meets UL 94 V-0 Flammability Rating
Halogen Free. “Green” Device (Note 1)
Lead Free Finish/RoHS pliant ("P" Suffix Designates RoHS
Operating Junction Temperature Range: -55°C to +150°C
Storage Temperature Range: -55°C to +150°C
Thermal Resistance: 833°C/W Junction to Ambient
