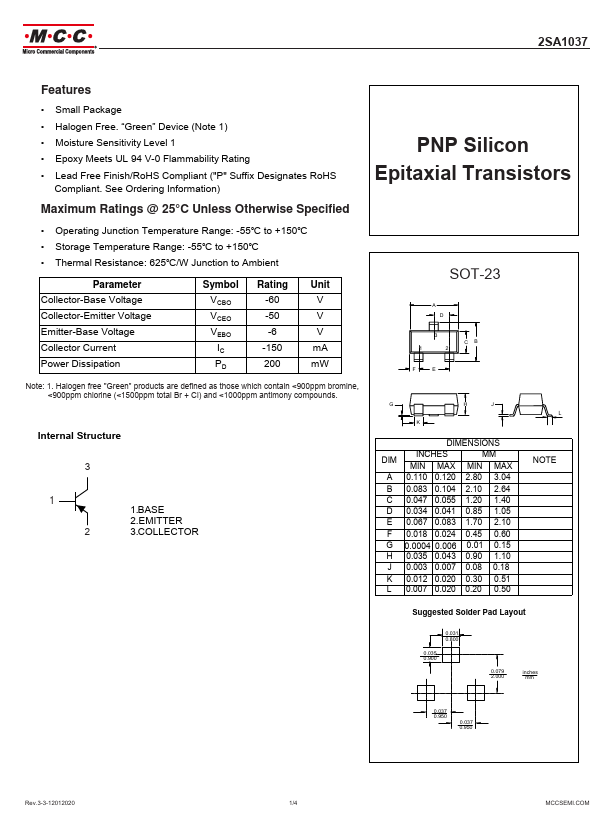

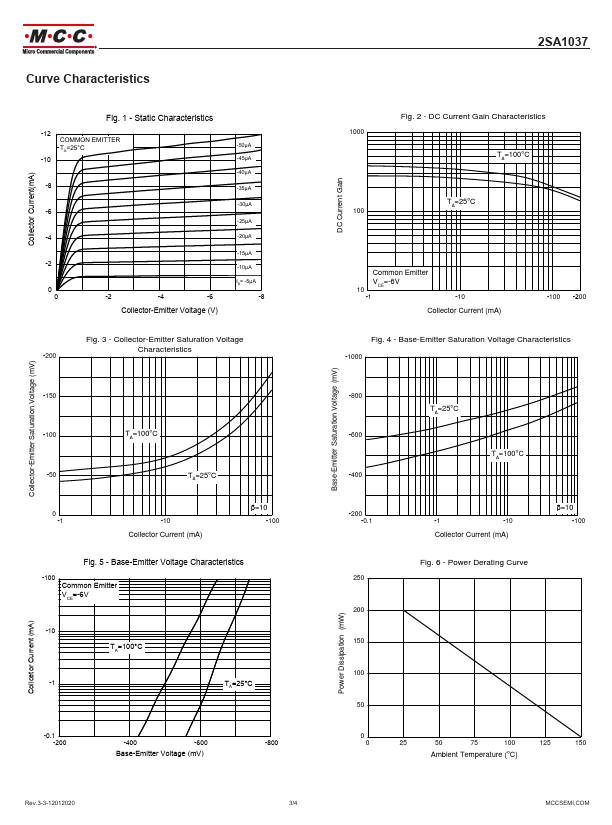

2SA1037
Features
- Small Package
- Halogen Free. “Green” Device (Note 1)
- Moisture Sensitivity Level 1
- Epoxy Meets UL 94 V-0 Flammability Rating
- Lead Free Finish/Ro HS pliant ("P" Suffix Designates Ro HS pliant. See Ordering Information)
Maximum Ratings @ 25°C Unless Otherwise Specified
PNP Silicon Epitaxial Transistors
- Operating Junction Temperature Range: -55℃ to +150℃
- Storage Temperature Range: -55℃ to +150℃
- Thermal Resistance: 625℃/W Junction to Ambient
Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Power Dissipation
Symbol VCBO VCEO VEBO IC PD
Rating -60 -50 -6 -150 200
Unit V V V m A m W
Note: 1. Halogen free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony pounds.
Internal Structure
1 2
1.BASE 2.EMITTER 3.COLLECTOR
SOT-23
DIMENSIONS
INCHES
MIN MAX MIN MAX
A 0.110 0.120 2.80 3.04
B...
