2SB772-GR - PNP Silicon Plastic-Encapsulate Transistor

Download the 2SB772-GR datasheet PDF. This datasheet also covers the 2SB772-R variant, as both devices belong to the same pnp silicon plastic-encapsulate transistor family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • Lead Free Finish/RoHS Compliant (Note1) ("P" Suffix designates RoHS Compliant. See ordering information).
  • Epoxy meets UL 94 V-0 flammability rating.
  • Moisure Sensitivity Level 1.
  • Capable of 1.25Watts of Power Dissipation.
  • Collector-current 3.0A.
  • Collector-base Voltage 40V.
  • Operating and storage junction temperature range: -55OC to +150OC.
  • Halogen free available upon request by adding suffix "-HF" Electrical Characteristics.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (2SB772-R-MCC.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
2SB772 MEDIUM POWER LOW-VOLTAGE TRANSISTOR Unisonic Technologies
2SB772 PNP SILICON POWER TRANSISTOR NEC
2SB772 PNP MEDIUM POWER TRANSISTOR ST Microelectronics
2SB772 Plastic Encapsulate Transistors SeCoS
2SB772 Silicon PNP Power Transistors Inchange Semiconductor

Other Datasheets by Micro Commercial Components

Part Number Description
2SB772-O PNP Silicon Plastic-Encapsulate Transistor
2SB772-R PNP Silicon Plastic-Encapsulate Transistor
2SB772-Y PNP Silicon Plastic-Encapsulate Transistor
2SB744 PNP SIlicon Power Transistor
2SB1073-Q Silicon PNP Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

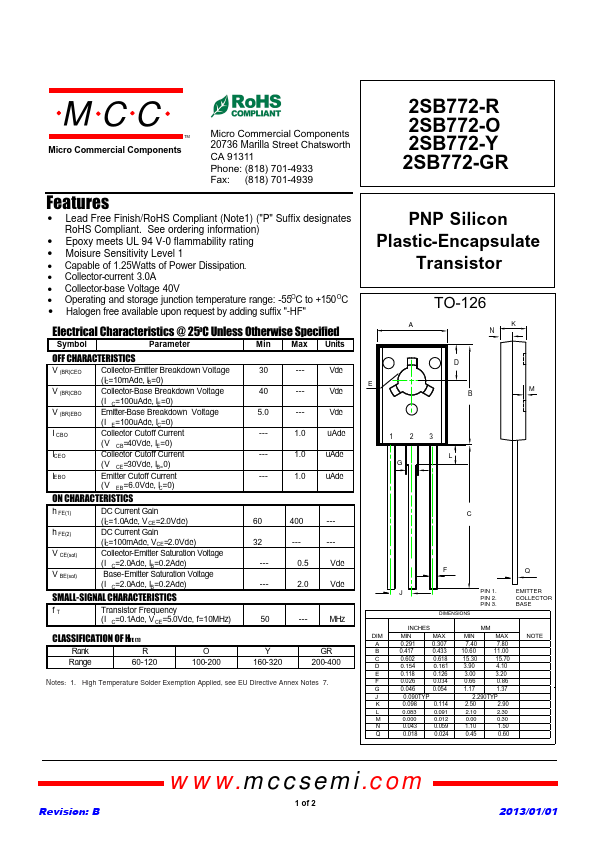

MCC TM Micro Commercial Components   omponents 20736 Marilla Street Chatsworth    !"# $ %    !"# Features • Lead Free Finish/RoHS Compliant (Note1) ("P" Suffix designates RoHS Compliant. See ordering information) • Epoxy meets UL 94 V-0 flammability rating • Moisure Sensitivity Level 1 • Capable of 1.25Watts of Power Dissipation. • Collector-current 3.
