Micro Commercial Components 2SC2883
NPN Silicon Power Transistors
| Part No. | 2SC2883 |
|---|---|
| Datasheet | 2SC2883 Download |
| Manufacturer |  Micro Commercial Components |
| Description | NPN Silicon Power Transistors |
| Buy | Stock & Price |

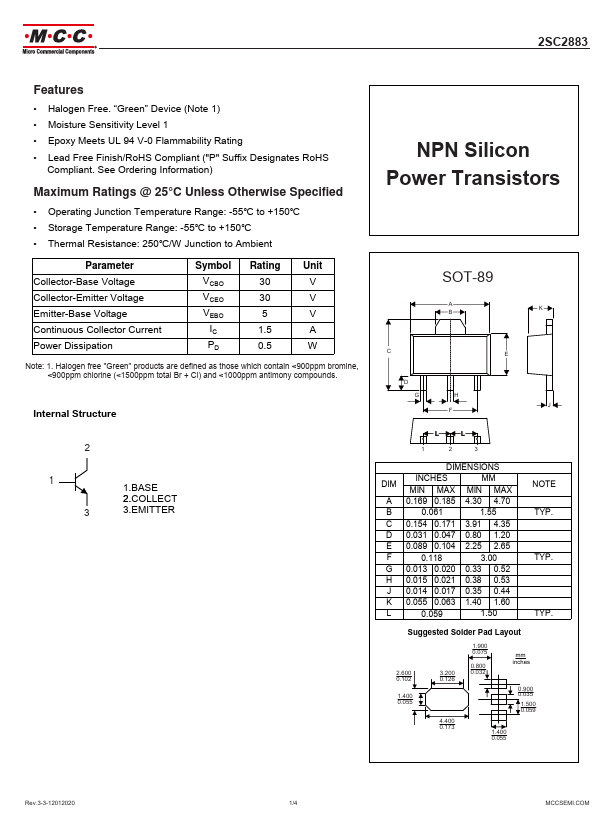

FEATURES
● Halogen Free. “Green” Device (Note 1)● Moisture Sensitivity Level 1
● Epoxy Meets UL 94 V-0 Flammability Rating
● Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information)
MAXIMUM RATINGS
@ 25°C Unless Otherwise Specified● Operating Junction Temperature Range: -55℃ to +150℃
● Storage Temperature Range: -55℃ to +150℃
● Thermal Resistance: 250℃/W Junction to Ambient Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Power Dissipation Symbol VCBO VCEO VEBO IC PD Rating 30 30 5 1.5 0.5 Unit V V V A W Note: 1. Halogen free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. Internal Structure 2 1 3 1.BASE 2.COLLECT 3.EMITTER NPN Silicon Power Transistors SOT-89 A B K C E D G H J F L L 1 2 3 DIMENSIONS DIM INCHES MM MIN MAX MIN MAX A 0.169 0.185 4.30 4.70 B 0.061 1.55 C 0.154 0.171 3.91 4.35 D...
