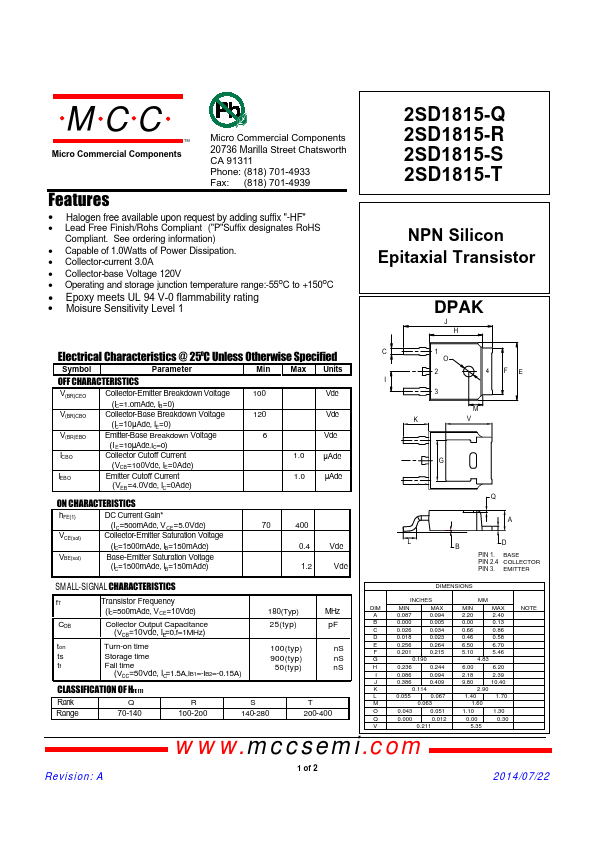

2SD1815-Q
Features
omponents 20736 Marilla Street Chatsworth !"# $
% !"#
- Halogen free available upon request by adding suffix "-HF"
- Lead Free Finish/Rohs pliant ("P"Suffix designates Ro HS pliant. See ordering information)
- Capable of 1.0Watts of Power Dissipation.
- Collector-current 3.0A
- Collector-base Voltage 120V
- Operating and storage junction temperature range:-55o C to +150o C x Epoxy meets UL 94 V-0 flammability rating
- Moisure Sensitivity Level 1
2SD1815-Q 2SD1815-R 2SD1815-S 2SD1815-T
NPN Silicon Epitaxial Transistor
DPAK
Electrical Characteristics @ 25OC Unless Otherwise Specified
Symbol
Parameter
Min Max Units
OFF CHARACTERISTICS
V(BR)CEO
Collector-Emitter Breakdown Voltage
(IC=1.0m Adc, IB=0)
V(BR)CBO
Collector-Base Breakdown Voltage
(IC=10µAdc, IE=0)
V(BR)EBO
Emitter-Base Breakdown Voltage
(I E=10µAdc,IC=0)
ICBO
Collector Cutoff Current
(VCB=100Vdc, IE=0Adc)
IEBO
Emitter...
