Micro Commercial Components 2SD1815-R
NPN Silicon Epitaxial Transistor
| Part No. | 2SD1815-R |
|---|---|
| Datasheet | 2SD1815-R Download |
| Manufacturer |  Micro Commercial Components |
| Description | NPN Silicon Epitaxial Transistor |
| Buy | Stock & Price |

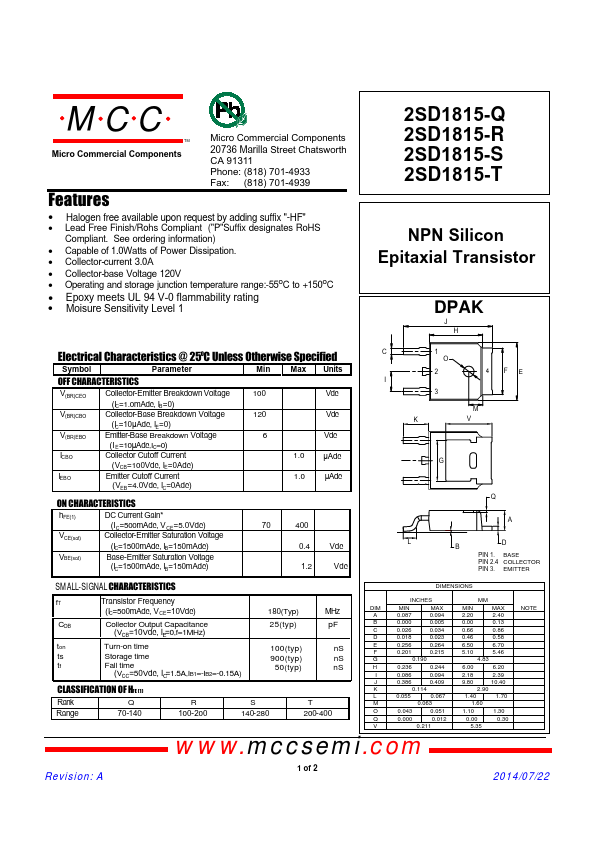

FEATURES
omponents 20736 Marilla Street Chatsworth ! "# $ % ! "#● Halogen free available upon request by adding suffix "-HF"
● Lead Free Finish/Rohs Compliant ("P"Suffix designates RoHS Compliant. See ordering information)
● Capable of 1.0Watts of Power Dissipation.
● Collector-current 3.0A
● Collector-base Voltage 120V
● Operating and storage junction temperature range:-55oC to +150oC x Epoxy meets UL 94 V-0 flammability rating
● Moisure Sensitivity Level 1 2SD1815-Q 2SD1815-R 2SD1815-S 2SD1815-T NPN Silicon Epitaxial Transistor DPAK J H
ELECTRICAL CHARACTERISTICS
@ 25OC Unless Otherwise Specified Symbol Parameter Min Max Units OFF CHARACTERISTICS V(BR)CEO Collector-Emitter Breakdown Voltage 100 (IC=1.0mAdc, IB=0) V(BR)CBO Collector-Base Breakdown Voltage 120 (IC=10µAdc, IE=0) V(BR)EBO Emitter-Base Breakdown Voltage 6 (I E=10µAdc,IC=0) ICBO Collector Cutoff Current (VCB=100Vdc, IE=0Adc) IEBO Emitter Cutoff Current (VEB=4.0Vdc, IC=0Adc) Vdc Vdc Vdc 1.0 µAdc 1.0 µAdc ON CHARACTERISTICS...
