BC847BS - Dual NPN Small Signal Transistors

Micro Commercial Components

Key Features

For Switching and AF Amplifier.

BC847BS dual npn small signal transistors by Micro Commercial Components - Datasheet Preview

Datasheet Details

Part number	BC847BS
Manufacturer	Micro Commercial Components
File Size	829.14 KB
Description	Dual NPN Small Signal Transistors
Datasheet	BC847BS Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
BC847BS	100mA NPN/NPN transistor	nexperia
BC847BS	NPN Plastic Encapsulate Transistor	SeCoS
BC847BS	DUAL NPN SMALL SIGNAL SURFACE MOUNT TRANSISTOR	DIODES
BC847BS	NPN general purpose double transistor	Philips
BC847BS	NPN GENERAL PURPOSE AMPLIFIER	UTC

Other Datasheets by Micro Commercial Components

Part Number	Description
BC847B	NPN Transistors
BC847BM	NPN Transistor
BC847BV	NPN Plastic-Encapsulate Transistors
BC847BW	NPN General Purpose Transistors
BC847A	NPN Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

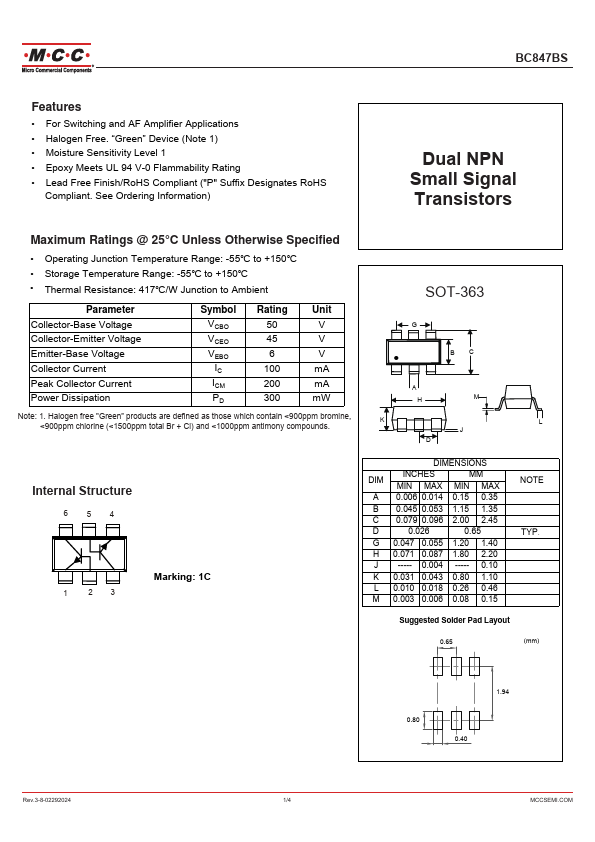

BC847BS Features • For Switching and AF Amplifier Applications • Halogen Free. “Green” Device (Note 1) • Moisture Sensitivity Level 1 • Epoxy Meets UL 94 V-0 Flammability Rating • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) Dual NPN Small Signal Transistors Maximum Ratings @ 25°C Unless Otherwise Specified • Operating Junction Temperature Range: -55℃ to +150℃ • Storage Temperature Range: -55℃ to +150℃ • Thermal Resistance: 417℃/W Junction to Ambient Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Peak Collector Current Power Dissipation Symbol VCBO VCEO VEBO IC ICM PD Rating 50 45 6 100 200 300 Unit V V V mA mA mW SOT-363 G • A H BC M Note: 1.
